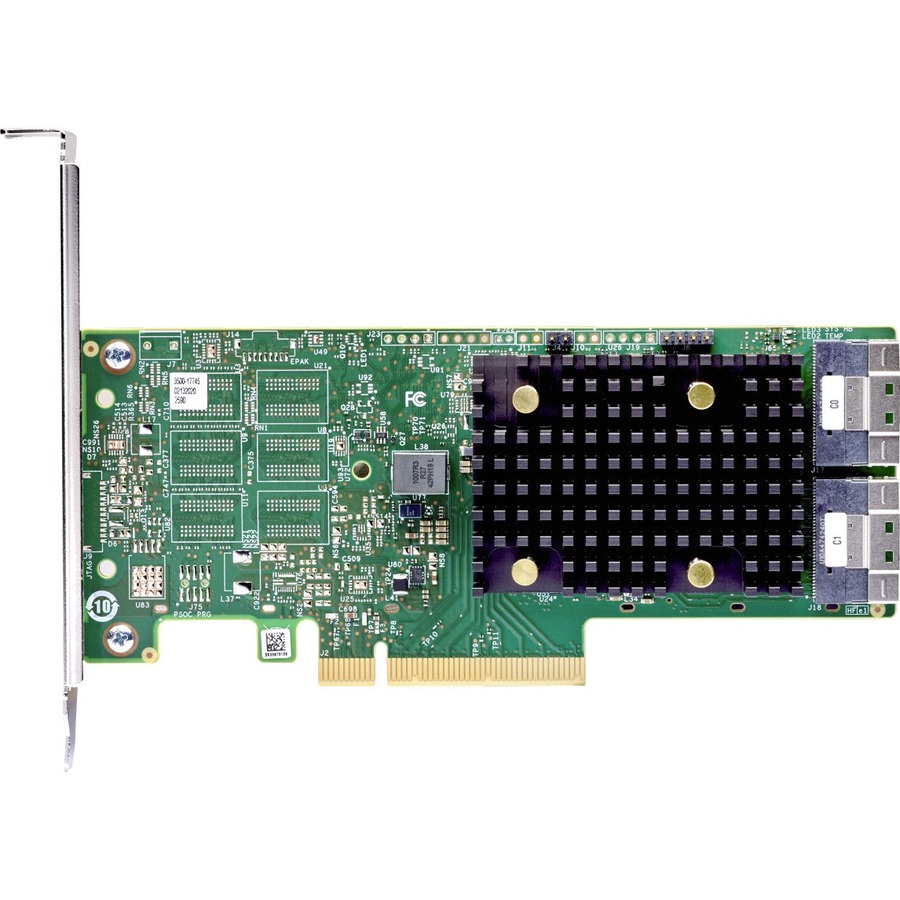

Lenovo ThinkSystem 440-16i SAS/SATA PCIe Gen4 12Gb HBA
12Gb/s SAS - PCI Express 4.0 x8 - Plug-in Card - JBOD RAID Level - 4 x4 SFF-8654 - 16 Total SAS Port(s) - 16 SAS Port(s) Internal - PC, Linux - Windows 10, Windows Server 2016, Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, ... Supported Operating System
About This Product
Overview
The ThinkSystem 440-8i and 440-16i SAS/SATA PCIe Gen4 12Gb HBAs are high performance PCIe 4.0 host bus adapters for internal storage connectivity in ThinkSystem servers. The adapters integrate the latest enhancements SAS technology and offer 8 or 16 lanes of 12 Gbps SAS. The adapters are available in two form factors, low-profile PCIe and a custom form-factor design. The custom design adapter is cabled to an onboard PCIe 4.0 x8 port on the server and not occupy a standard PCIe slot.
- SAS Controller offers maximum storage productivity with added dependability
- 12Gb/s SAS controller type for faster, efficient data transfer rates with maximum dependability
- JBOD RAID level for faster, dependable read and write performance for maximum storage productivity
- Server device support for enhanced storage efficiency and productive data transfer capability
- Windows 10 OS support has improved security features for better reliance
- PCI Express 4.0 x8 host interface ensures dependable data transfer for maximum efficiency
- Plug-in Card form factor for added reliability and dependability
- SAS Controller provides a larger storage expansion base capacity for your PC
Quick Specifications
- Product Model
- 440-16i
- Product Type
- SAS Controller
- Host Interface
- PCI Express 4.0 x8
- Controller Type
- 12Gb/s SAS
- RAID Supported
- No
- RAID Levels
- JBOD
- Device Supported
- Server
- Total Number of SAS Ports
- 16
