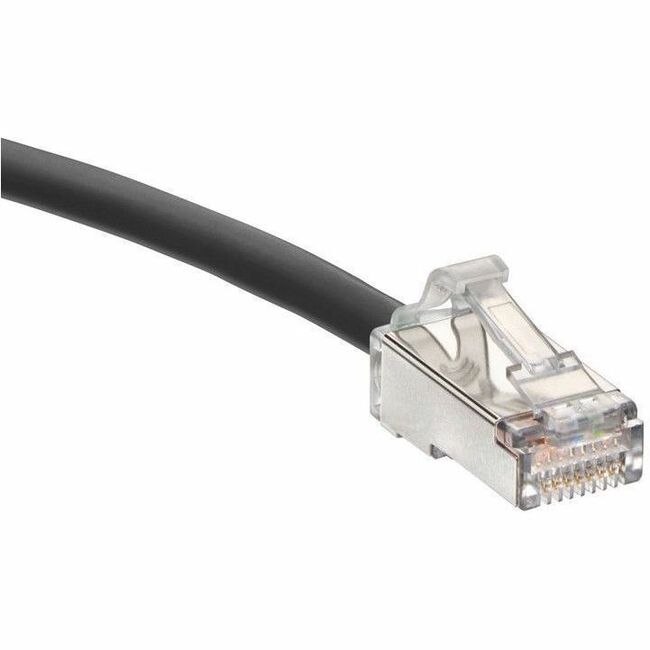

Leviton Cat 6A Small Diameter High-Flex Patch Cord, 3 ft (0.91 m), Black
3 ft Category 6a Network Cable for Network Device, Switch, Router - First End: 1 x RJ-45 Network - Male - Second End: 1 x RJ-45 Network - Male - 10 Gbit/s - Patch Cable - Shielding - Gold Plated Contact - CM - 28 AWG - Black
About This Product
Overview
Patch cords shall meet or exceed electrical transmission performance requirements of links and channels as described in ANSI/TIA-568.2-D (Cat 6A), ISO/IEC 11801-1 (Class EA), and EN 50173-1 (Class EA). The patch cords shall be 28 AWG, shielded, twisted pair, stranded conductor construction with a standard 8-position modular plug on both ends. Plug contacts shall be plated with minimum of 50 micro inches of gold. Patch cords shall have an outer diameter of 0.185" (4.7 mm) and shall be available in white, yellow, gray, black, red, green, and blue. FEATURES & BENEFITS
- Available in white, yellow, gray, black, red, green and blue
- Available in lengths from 1-50 feet
- Power over Ethernet compatible
- Accommodate use in high-density switches, routers, and other electronics
- Bend radius is a narrow 0.74 inches, versus 1.0 inch for typical Cat 6A patch cords
- Under PoE at 90 watts, maximum bundle size is 12 cables with a separation of 1.5 inches from outer edge to outer edge of cable bundles for 28 AWG cables installed in air and a maximum ambient temperature of 45 ºC (113 ºF), as defined in TIA TSB-184-A
Quick Specifications
- Product Type
- Network Cable
- Cable Type
- Category 6a
- Cable Characteristic
- Patch Cable
- Cable Length
- 3 ft
- Connector Type on First End
- RJ-45 Network - Male
- Connector Gender on First End
- Male
- Connector on First End Details
- 1 x RJ-45 Network - Male
- Connector Type on Second End
- RJ-45 Network - Male
