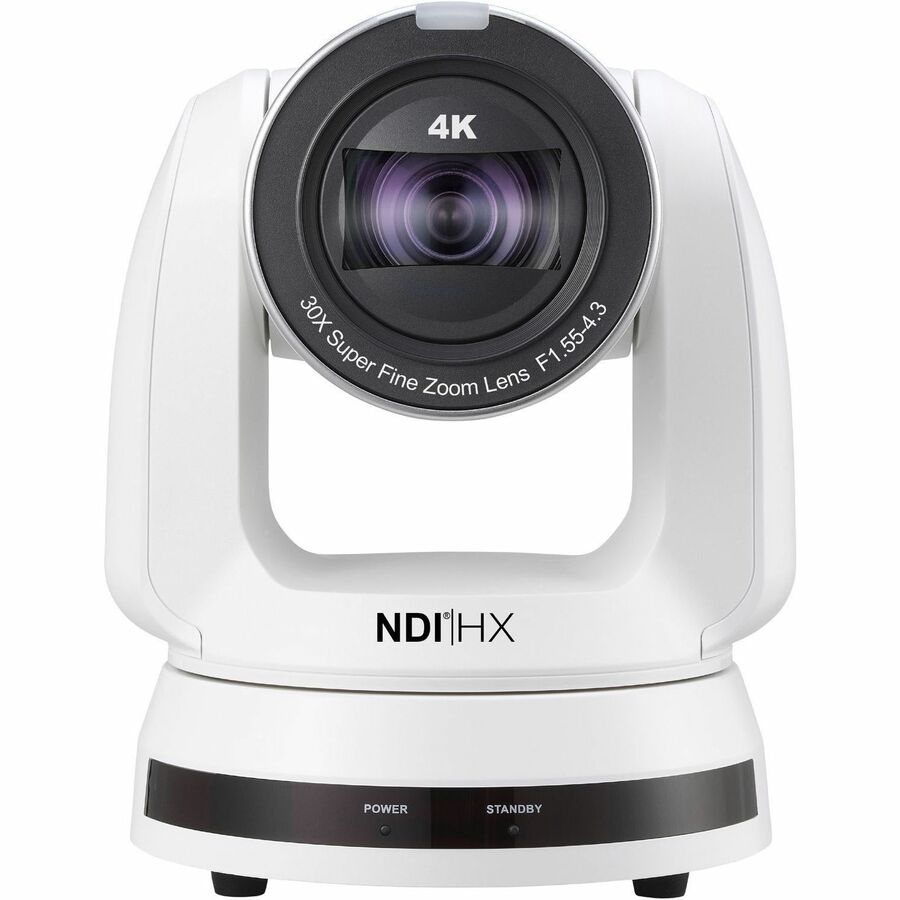

Lumens VC-A71SN 9.1 Megapixel 4K Network Camera - Color - White - TAA Compliant
H.264, H.265, HEVC, MJPEG - 3840 x 2160 - 6.50 mm- 202 mm Varifocal Lens - 30x Optical - 60 fps - CMOS - Ethernet - USB - HDMI
About This Product
Overview
NDI|HX3 Technology
VC-A71SN supports the latest version of the NDI protocol, NDI®|HX3. It delivers very high-quality video with ultra-low latency and connects directly to NDI networks.
12G-SDI
Lumens VC-A71SN is equipped with an 12G-SDI video output. This port delivers UltraHD at up-to 60 frames a second, meaning it can capture fast motion and deliver smooth video output.
BT.2020/Rec.709
Lumens VC-A71SN supports the BT.2020 color gamut for wide and precise color reproduction. With BT.2020, VC-A71SN will be easy to match other cameras and deliver video output optimized for new generation UltraHD monitors.
Live VR/AR Video Production
VC-A71SN supports the FreeD protocol.
This enables users to work with Virtual Reality and Augmented Reality sets without the need for additional sensors.
Smooth PTZ Movement
With high-precision motor control and Lumens' innovative mechanical transmission mechanism, VC-A71SN achieves smooth, high-speed movement without any judder. The speed of movement is fully customizable.
- 2160p 60, 30x optical zoom, 1/1.8" Sensor
- 12G-SDI, HDMI, Ethernet, USB3.0 output
- Support NDI|HX3 / NDI|HX2 / RTSP / RTMP / RTMPS / MPEG- TS / SRT
- Support FreeD protocol for live VR/AR production
- Support BT.2020 color space
Quick Specifications
- Product Model
- VC-A71SN
- Product Type
- Network Camera
- HD Recording
- Yes
- Recording Formats
- 4K
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/1.8"
- Color Supported
- Color
- Field of View
- Horizontal 63° (Wide) to 3.7° (Tele)/Vertical 35.4° (Wide) to 2.1° (Tele)/Diagonal
