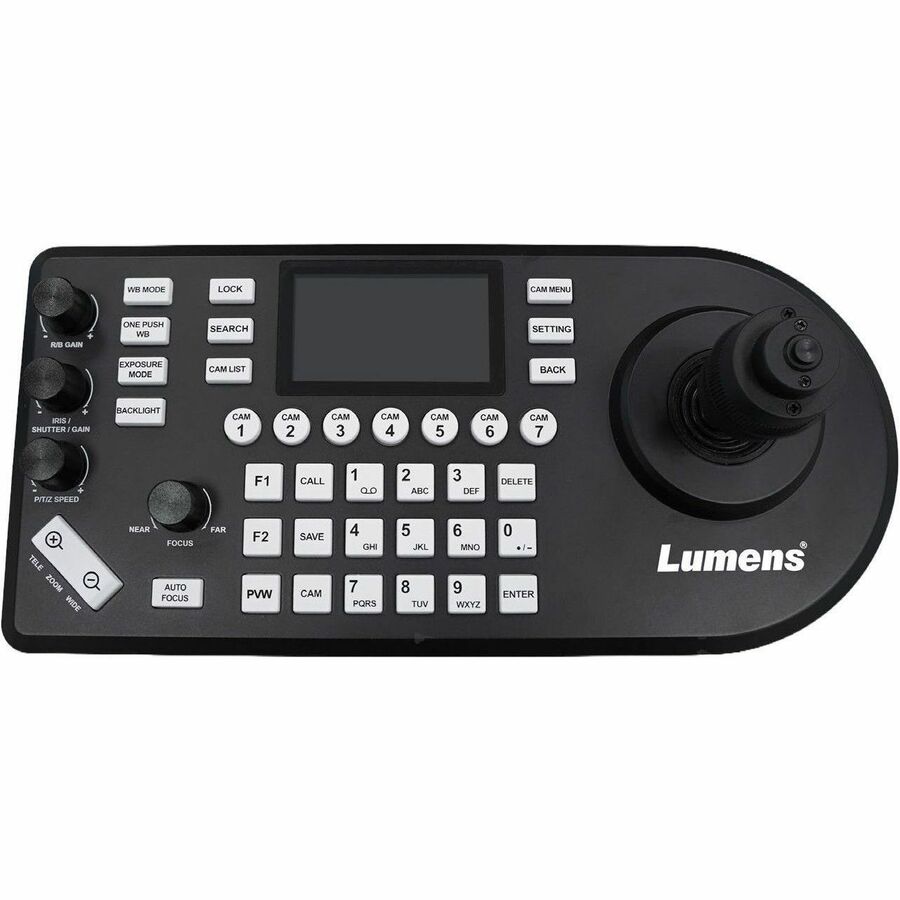

Lumens IP Camera Controller
255 Controllable Cameras - Pan, Tilt, Zoom, Focus Control - 3" LCD Serial Port - Network (RJ-45) Port - TAA Compliant
About This Product
Overview
3" LCD Preview Screen
The low latency preview screen monitors up-to 255 IP streams simultaneously. For precise framing, the operator can switch to a single stream layout enabling full screen video preview.
Quick Camera Select
With 7 hot keys, the operator can instantly select the PTZ or box camera they want to control. This makes it easier than ever to manage a multi-camera production.
Quick Settings
The LCD screen displays all key camera parameters including iris, shutter and gain. This allows quick and accurate set-up of each camera.
Single Cable Installation
The VS-KB21's Ethernet connection is multi-purpose. Connected to a PoE-enabled switch, the network cable can transport video, power and control signals. This makes installation extremely quick and cost-effective.
- Controls up-to total of 255 IP-connected cameras
- Quick access control of exposure, white balance, focus, PTZ speed and 2 user-assignable keys
- Supports RTSP Preview on LCD screen
- Supports RS-232, RS-422, and Ethernet control
- Supports VISCA and VISCA Over IP control protocols
Quick Specifications
- Product Model
- VS-KB21
- Product Type
- Surveillance Control Panel
- Number of Controllable Cameras
- 255
- Control Type
- Pan Tilt Zoom Focus
- Features
- White Balance
- Screen Size
- 3"
- Display Type
- LCD
- Serial
- Yes
