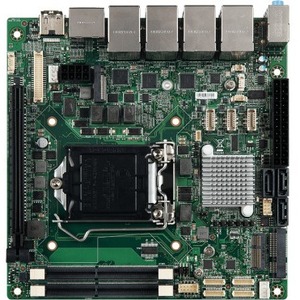

MSI MS-98L1 Desktop Motherboard - Intel C246 Chipset - Socket H4 LGA-1151 - Mini ITX
Manufacturer: MSI
Mfr. Part: 919-98L1-005
Xeon, Core i3, Core i5, Core i7, Celeron, Pentium Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - SODIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 3 x SATA Interfaces
About This Product
Overview
Mini-ITX with 9th/8th Gen Intel® Coffee Lake Refresh-S/Coffee Lake-S Xeon®, Core™ i7/i5/i3, Pentium®, Celeron® Processor & Intel® C246/Q370/H310 for High-Performance Solution
- Intel® 8th/9th Gen Coffee Lake-S/Coffee Lake Refresh-S Series with C246/Q370/H310
- 2 DDR4 2666 MHz ECC/non-ECC SODIMM slots up to 64GB
- Triple independent displays: 2DP, HDMI (DP by option), LVDS
- 4 GbE LAN with RJ-45
- 1 PCIe x16 (Gen 3) Slot, M.2 E key (with CNVi), 1 Mini-PCIe (Full size, with SIM Holder) slots
- M.2 M key, 3 SATA 3.0 for storage
- SATA RAID 0/1/5/10 (RAID 10 Configured with M.2 M Key)
- 4 USB 3.2 Gen 2, 6 USB 3.2 Gen 1, 2 USB 2.0, 6 COM (2 RS-485), GPIO, Audio, S/PDIF, System FAN
- Onboard TPM 2.0 (by option)
- SMBus, iAMT 12.x
- ATX Power
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Supported 0 RAID levels provide data reliability and fault tolerance
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
Quick Specifications
- Product Model
- MS-98L1
- Product Type
- Desktop Motherboard
- Chipset Manufacturer
- Intel
- Chipset Model
- C246
- Total Processor Supported
- 1
- Processor Socket
- Socket H4 LGA-1151
- Processor Supported
- Xeon Core i3 Core i5 Core i7 Celeron Pentium
- Number of Memory Slots
- 2
