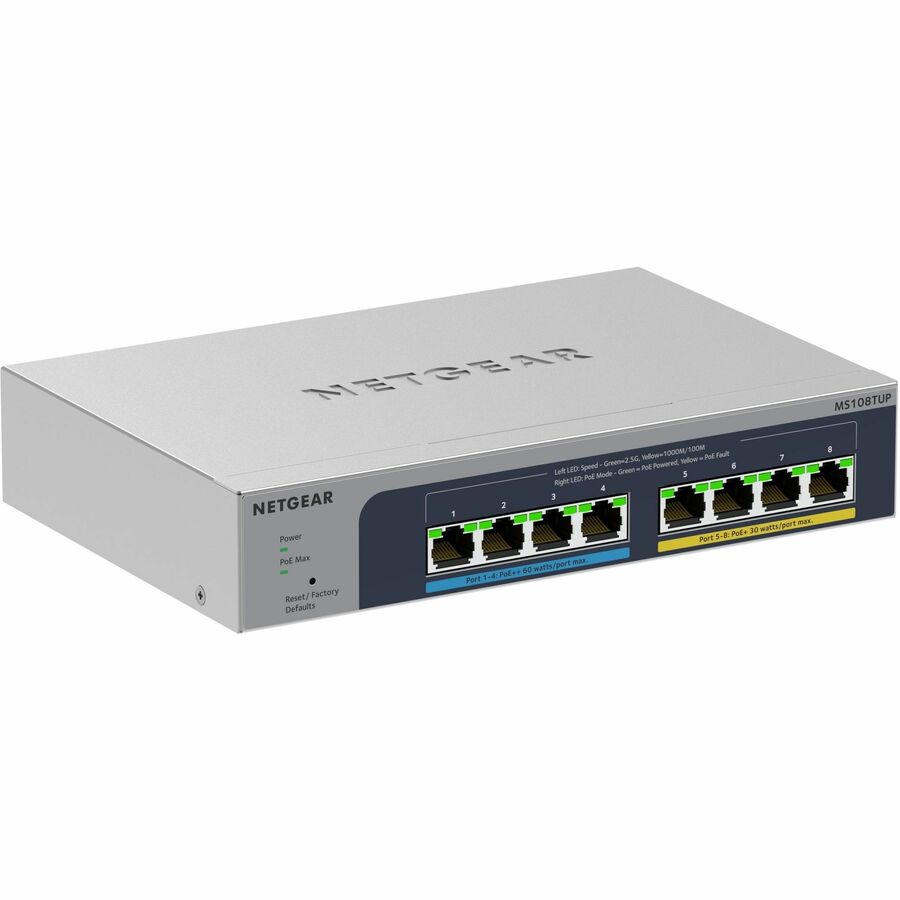

Netgear 8-port Ultra60 PoE++ Multi-Gigabit (2.5G) Ethernet Smart Switch
8 Ports - Manageable - 2.5 Gigabit Ethernet - 2.5GBase-T - 4 Layer Supported - 230 W PoE Budget - Twisted Pair - PoE Ports - Desktop, Wall Mountable, Compact - Lifetime Limited Warranty
About This Product
Overview
High-speed and Powerful Network with a Compact Switch
NETGEAR Smart Switches with PoE meet business networks growing needs by providing powerful Layer 2+/Lite L3 features, great PoE functionality, and enhanced performance and usability that can support the business's needs to keep up with the growth of network speed, virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, whether in the hospitality, catering, education or retail domains. Also, the increase in speeds for WiFi 6 access points now imply the need for faster speeds in the network. The MS108TUP supports 2.5 Gigabit speed connectivity and Power-Over- Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access points and many other applications. This new Smart switch includes advance PoE control to help optimize the performance and troubleshooting of business networks. The new and improved business-friendly GUI allows easy management and simple configuration. With the growing deployment of applications and an all- in-one solution, providing management and power to these applications would be ideal. The MS108TUP has the option to be remotely controlled through the NETGEAR Insight Remote Cloud Management platform.
Highlights
- 802.3bt standard offering up to 60W/port on Port 1-4, 802.3at (30W/port) on Port 5-8
- Business-friendly and easy-to-use web browser-based management GUI
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto "denial-of-service" (DoS) prevention
- Troubleshoot connection issues via cable test
- L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
- IGMP Snooping and Querier for multicast optimization
- IPv6 management: IPv6 QoS, IPv6 ACL, IPv6 Static Routing, and static and dynamic IPv6 address assignment
- SNMP v1, v2c, v3 and RMON remote monitoring
- Uninterrupted PoE to ensure power stays on during software upgrade and soft reboot
- PoE Self-healing to reboot PoE- connected devices when they fall offline or go unresponsive.
- Energy Efficient Ethernet (IEEE 802.3az) support for maxium power savings
- Loop prevention and broadcast storm controls
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
- Ethernet Switch supports network continuity by maintaining data transmission during operation
- Features 8 networking ports to establish a local wired network or extend connectivity within an existing layout
- Power Adapter power source supports consistent electrical supply for device operation
- Layer 4 support enables traffic classification and bandwidth control for environments with multiple tenant networks
- Desktop form factor supports placement outside dedicated wiring enclosures for accessible device positioning
- Managed capability enables configuration and monitoring functions that support structured network operation
- 2.5 Gigabit Ethernet Ethernet technology supports network communication and connectivity using a reliable and straightforward connection method
- Twisted pair cable support enables cost?efficient network connections for data transmission across distances
Quick Specifications
- Product Line
- Business
- Product Model
- MS108TUP
- Product Type
- Ethernet Switch
- Features
- Fanless Remote Monitoring (RMON) Auto Denial of Service (DoS) Prevention Access Control List Energy Efficient Port Mirroring Loop Protection Broadcast Storm Control DHCP Relay
- Total Number of Network Ports
- 8
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 4 x 2.5 Gigabit Ethernet PoE++ 4 x 2.5 Gigabit Ethernet PoE+
- Media Type Supported
- Twisted Pair
