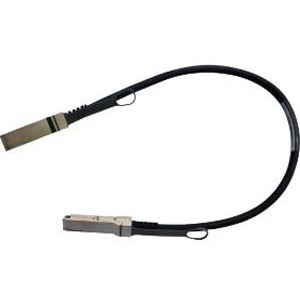

Mellanox MCP1650-V001E30 DAC Cable Ethernet 200GbE QSFP56 1m
3.28 ft QSFP56 Network Cable for Network Device - First End: 1 x SFF-8665 QSFP56 Network - Second End: 1 x SFF-8665 QSFP56 Network - 200 Gbit/s - LSZH - 26 AWG - Black
About This Product
Overview
NVIDIA MCP1650-V001E30 Direct Attach Copper Cable Ethernet
200GbE QSFP56 LSZH 1m Black Pulltab 30AWG200GbE QSFP56 Direct Attach Copper Cable
NVIDIA Networking passive DAC cables provide robust connections for leading-edge 200GbE systems. These cables provide 200Gb/s connectivity between devices using QSFP56 ports.
LinkX 200GbE passive DAC cables fill the need for short cost-effective connectivity in the data center. Passive copper cables require no additional power to ensure quality connectivity. highquality solutions provide a power-efficient replacement for active power connectivity such as fiber optic cables for short distances. Optimizing systems to operate with LinkX 200GbE passive DAC cables significantly reduces power consumption and EMI emission.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
Highlights
- Supports 200GbE Ethernet
- Compliant with SFF-8665
- Up to 200Gb/s data rate
- 4x 50Gb/s PAM4 modulation
- Ultra low crosstalk for improved performance
- Low insertion loss
- Tested in an end-to-end system
- RoHS compliant
- Halogen free
- Operating case temperature of 0-70C
- Provides a simple and efficient way to connect multiple devices within your business network, ensuring smooth communication and reliable data transfer
- Features QSFP56 connector configuration for high-throughput interconnects in modern data centers, ensuring efficient and low-latency data transfer across systems
- Equipped with a halogen-free jacket for added fire safety, reducing toxic emissions and ensuring compliance with environmental standards
- SFF-8665 QSFP56 Network provides a stable connection with network devices, supporting uninterrupted signal transmission and system integration
Quick Specifications
- Product Line
- LinkX
- Product Type
- Network Cable
- Cable Type
- QSFP56
- Cable Length
- 3.28 ft
- Connector Type on First End
- SFF-8665 QSFP56 Network
- Connector on First End Details
- 1 x SFF-8665 QSFP56 Network
- Connector Type on Second End
- SFF-8665 QSFP56 Network
- Connector on Second End Details
- 1 x SFF-8665 QSFP56 Network
