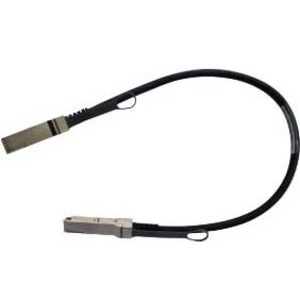

Mellanox MCP1650-V003E26 DAC Cable Ethernet 200GbE QSFP56 3m
9.84 ft QSFP56 Network Cable for Network Device - First End: 1 x SFF-8665 QSFP56 Network - Second End: 1 x SFF-8665 QSFP56 Network - 200 Gbit/s - LSZH - 26 AWG - Black
About This Product
Overview
NVIDIA MCP1650-V003E26 Direct Attach Copper Cable Ethernet 200GbE QSFP56 LSZH 3m Black Pulltab 26AWG
200GbE QSFP56 Direct Attach Copper Cable
NVIDIA Networking passive DAC cables provide robust connections for leading-edge 200GbE systems. These cables provide 200Gb/s connectivity between devices using QSFP56 ports.
LinkX 200GbE passive DAC cables fill the need for short cost-effective connectivity in the data center. Passive copper cables require no additional power to ensure quality connectivity. highquality solutions provide a power-efficient replacement for active power connectivity such as fiber optic cables for short distances. Optimizing systems to operate with LinkX 200GbE passive DAC cables significantly reduces power consumption and EMI emission.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
Highlights
- Supports 200GbE Ethernet
- Compliant with SFF-8665
- Up to 200Gb/s data rate
- 4x 50Gb/s PAM4 modulation
- Ultra low crosstalk for improved performance
- Low insertion loss
- Tested in an end-to-end system
- RoHS compliant
- Halogen free
- Operating case temperature of 0-70C
- Experience a simpler way to connect devices with the entire business network
- Features QSFP56 cable type to better accommodate your precise power supply requirements with maximum charging productivity
- Halogen Free feature for better usability and increased efficiency
- Network Device device supported for your convenience and better usability
Quick Specifications
- Product Line
- LinkX
- Product Type
- Network Cable
- Cable Type
- QSFP56
- Cable Length
- 9.84 ft
- Connector Type on First End
- SFF-8665 QSFP56 Network
- Connector on First End Details
- 1 x SFF-8665 QSFP56 Network
- Connector Type on Second End
- SFF-8665 QSFP56 Network
- Connector on Second End Details
- 1 x SFF-8665 QSFP56 Network
