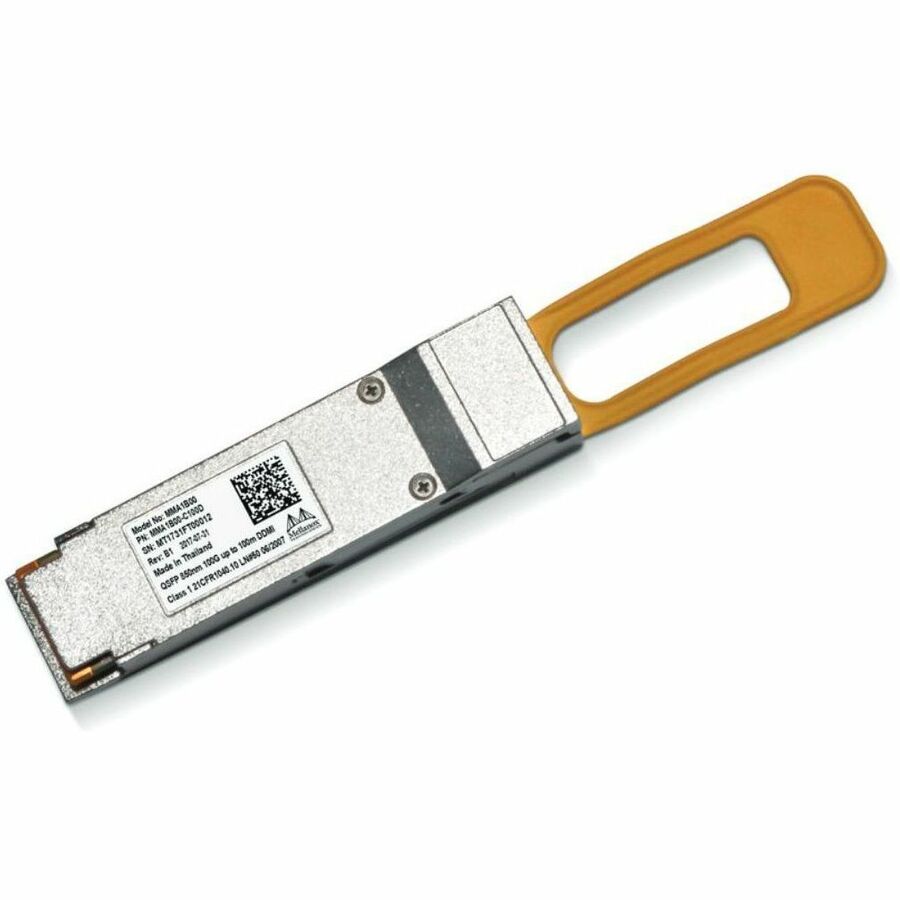

Mellanox 100Gb/s QSFP28 Optical Transceiver

Manufacturer: NVIDIA Corporation
Mfr. Part: MMA1B00-C100D

For Optical Network, Data Networking - 1 x MPO 100GBase-SR4 Network - Optical Fiber - Multi-mode - 100 Gigabit Ethernet - 100GBase-SR4 - Hot-pluggable

Mellanox 100Gb/s QSFP28 Optical Transceiver

About This Product

Overview

Mellanox® MMA1B00-C100 is a 4-channel, pluggable, QSFP28 optical transceiver, designed for use in 100Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology, in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) ribbon fiber, using a nominal wavelength of 850nm, and is SFF-8665 compliant.

The MMA1B00-C100 has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125 GBd.

The MMA1B00-C100D transceiver has DDM functions implemented for reading the following key parameters with associated warning and alarm thresholds:

-Temperature with warning/alarm

-Supply voltage with warning/alarm

-Laser bias current

-Transmitted optical power with warning/alarm

-Received optical power with warning/alarm

Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.

  • QSFP28 offers enhanced dependability with maximum productivity
  • With 100GBase-SR4 technology, get up to 100Gbps data transfer rate over optical fiber cable
  • Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity
  • Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
  • With its thicker diameter to carry the light of multiple wavelengths, multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity
  • Hot-pluggable form factor allows hassle-free and easy usage with increased efficiency
  • QSFP28 with optical network application/usage for maximum productivity and usability

Quick Specifications

Product Type
QSFP28
Application/Usage
Optical Network Data Networking
Total Number of Ports
1
Connector Type
MPO
Interfaces/Ports Details
1 x MPO 100GBase-SR4 Network
Media Type Supported
Optical Fiber
Fiber Mode Supported
Multi-mode
Ethernet Technology
100 Gigabit Ethernet
