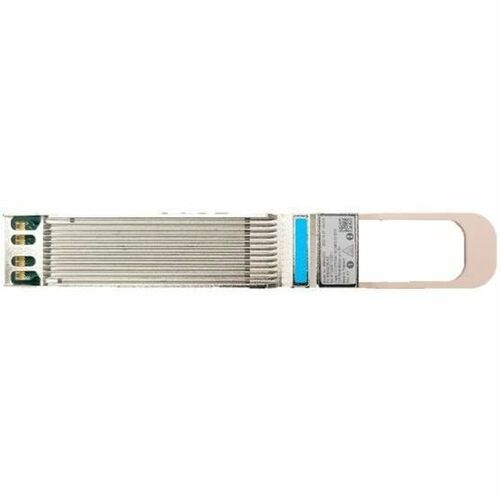

NVIDIA MMA4Z00-NS-T 800Gb/s Twin-port OSFP, 2x400Gb/s Multimode, 50m
For Data Networking, Optical Network - 2 x MPO-12/APC 800 Gigabit Ethernet Network - Optical Fiber - 850 nm Wavelength - Multi-mode - 800 Gigabit Ethernet800 Gbit/s - 0.05 km Maximum Distance - Hot-pluggable
About This Product
Overview
The NVIDIA MMA4Z00-NS-T is an Ethernet 800Gb/s (2x400Gb/s) Twin-port OSFP, DR8 multimode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb/s each. The parallel multimode, short reach 8-channel uses 100G-PAM4 modulation and has a maximum fiber reach of 50-meters using 8 multimode fibers. The 50-meter length assumes two optical patch panels in the link.
The Spectrum-4 switches require finned-top OSFP shells for extra transceiver cooling. The main application for MMA4Z00-NS-T is linking two switches together with up to 50-meter transceivers (marked blue).
The transceiver combinations guarantee optimal operation in NVIDIA end-to-end systems and customer networking solutions. Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
- Ethernet
- 800G multimode transceiver
- 8-channels of 100G-PAM4 electrical modulation
- Two ports of 4-channel 100G-PAM4 optical modulation
- Supports two straight 400Gb/s or two 1:2 splitter fiber cables for 200Gb/s
- Finned-top OSFP for air-cooled switches
- 850nm VCSEL
- Maximum reach:
- 30m using OM3 fiber
- 50m using OM4 fiber
Quick Specifications
- Product Model
- MMA4Z00-NS-T
- Product Type
- OSFP
- Application/Usage
- Data Networking Optical Network
- Total Number of Ports
- 2
- Connector Type
- MPO-12/APC
- Interfaces/Ports Details
- 2 x MPO-12/APC 800 Gigabit Ethernet Network
- Media Type Supported
- Optical Fiber
- Fiber Optic Cable Wavelength
- 850 nm
