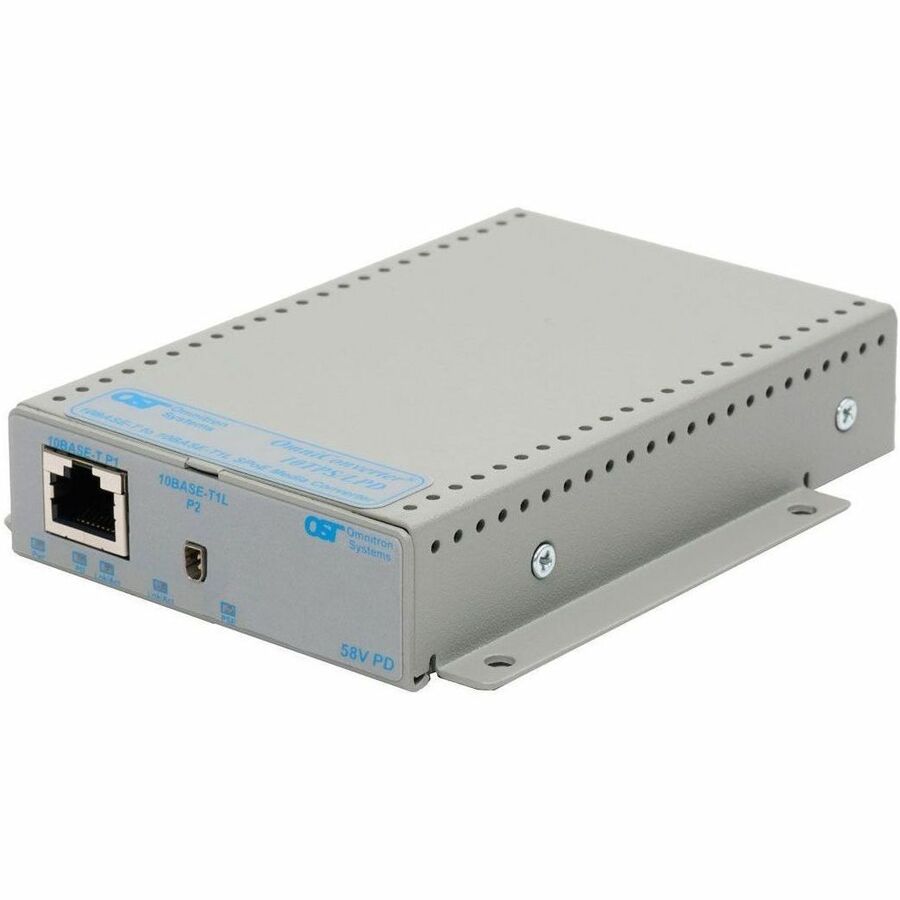

OmniConverter 10T/APS 1 x 10BASE-T RJ-45 and 1 x 10BASE-T1L IEC SPE Jack APS Class A, DC Terminal, Extended Temp

The OmniConverter 10T/APS Single Pair Ethernet converters are 10BASE-T1L products that convert 10BASE-T Ethernet to 10BASE-T1L Ethernet. They are designed for digital instrumentation solutions used for industrial control processes. They utilize single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up to 200 or 1000 meters depending on the model number.

The 10T/APS converters feature one 10BASE-T1L 3-pin terminal or IEC 63171-2 port and one 10BASE-T RJ-45 port supporting 10Mbps full-duplex data rates.

Omnitron 10T/APS converters are interoperable with Ethernet-APL Class A, C, 3 and 4 edge/field devices and act as a Power Source capable of delivering up to 56 watts, depending on the model number. The 10T/APS models 2022 and 2024 support a fixed voltage of 1.0 V peak-to-peak to the field device. The 10T/APS models 2025 and 2027 automatic detection of link segment type and apply either 1.0 V or 2.4 V peak-to-peak to the field device.

The 10T/APS converters are interoperable with Ethernet-APL Field Devices using either Ethernet-APL Spur Segments or Ethernet-APL Trunk Segments. A Spur segment has a maximum distance of 200 meters and data signal amplitude of 1.0 volt peak-to-peak. A Trunk segment has a maximum distance of 1000 meters and data signal amplitude of 2.4 volts peak-to-peak.

They are available as standalone units with integrated mounting brackets. They can be DIN-rail mounted using the optional DIN-rail mounting clip kit (8252-0). Models come with a 2-pin DC power terminal connector.
