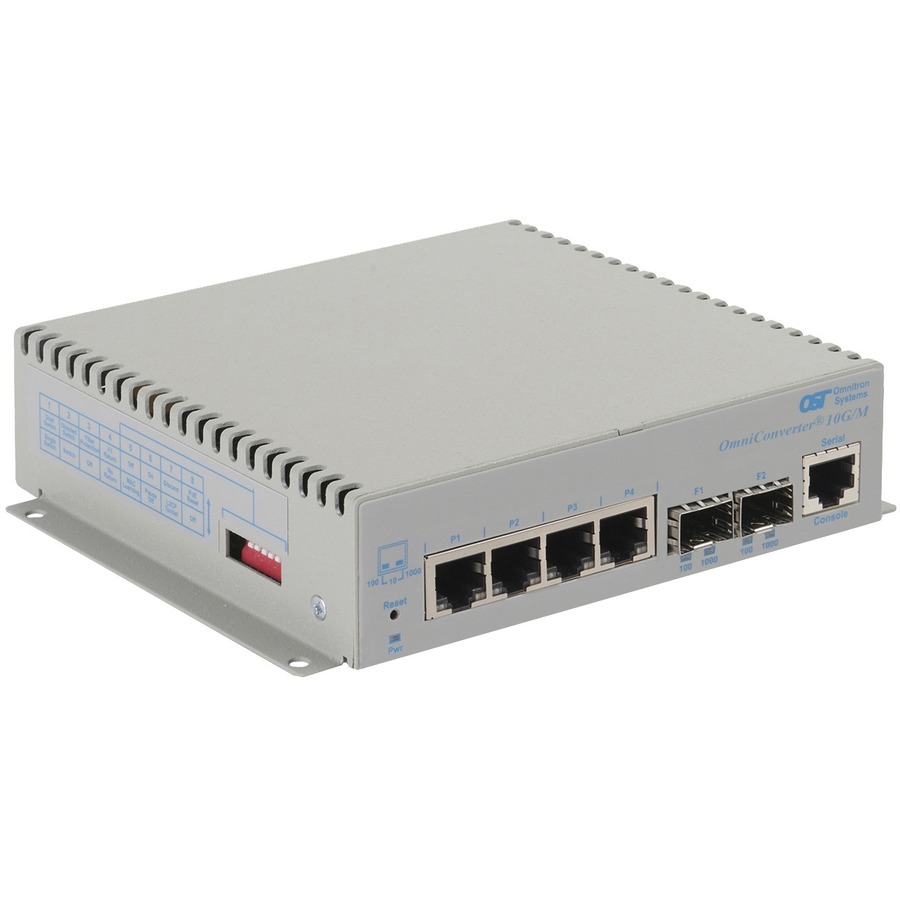

Omnitron Systems OmniConverter 10G/M, 2xSFP/SFP+, 8xRJ-45, 1xAC Powered Extended Temp
Manufacturer: Omnitron Systems
Mfr. Part: 2900-0-28-1Z
10 Ports - Manageable - 2 Layer Supported - Modular - Optical Fiber, Twisted Pair - Wall Mountable, DIN Rail Mountable, Shelf Mountable, Rack-mountable - 5 Year Limited Warranty
About This Product
Overview
The OmniConverter 10G/M is a managed compact Ethernet switch that features two 1/10G uplink ports and four or eight 10/100/1000 RJ-45 copper user ports. The OmniConverter 10G/M enables network distance extension with fiber cabling.
The OmniConverter 10G/M is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.
The OmniConverter 10G/M supports Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports.
The switches support redundant uplinks, industrial ring Media Redundancy Protocol (MRP), Spanning Tree protocol and daisy-chain configurations for high availability industrial network applications.
The switches support Dual Device mode that enables the 10G/M to operate as two independent and isolated Ethernet switches. In Dual Device mode, the 10G/M provides separate and independent data traffic paths between each uplink port and a group of user ports.
The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email event notification and alarm reporting is provided using Simple Mail Transfer Protocol.
The OmniConverter switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber, dual or single-fiber and standard or CWDM wavelengths.
The compact OmniConverter 10G/M Ethernet switches can be wall mounted, rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. The OmniConverter Ethernet switch models are available with 2-Pin DC Terminal or external 100-240V AC power adapters.
The OmniConverter 10G/M is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.
The OmniConverter 10G/M supports Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports.
The switches support redundant uplinks, industrial ring Media Redundancy Protocol (MRP), Spanning Tree protocol and daisy-chain configurations for high availability industrial network applications.
The switches support Dual Device mode that enables the 10G/M to operate as two independent and isolated Ethernet switches. In Dual Device mode, the 10G/M provides separate and independent data traffic paths between each uplink port and a group of user ports.
The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email event notification and alarm reporting is provided using Simple Mail Transfer Protocol.
The OmniConverter switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber, dual or single-fiber and standard or CWDM wavelengths.
The compact OmniConverter 10G/M Ethernet switches can be wall mounted, rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. The OmniConverter Ethernet switch models are available with 2-Pin DC Terminal or external 100-240V AC power adapters.
- Effectively increases available bandwidth on your network
- Barrel plug/connector type for convenient usage with added dependability
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Features 10 networking ports to easily establish a local network or expand your existing one
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Management capability provides control over setup and configuration of your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Quick Specifications
- Product Line
- OmniConverter
- Product Series
- 10G/M
- Product Model
- 2900-0-28-1Z
- Packaged Quantity
- 1
- Package Type
- Retail
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 10
- Uplink Port
- Yes
