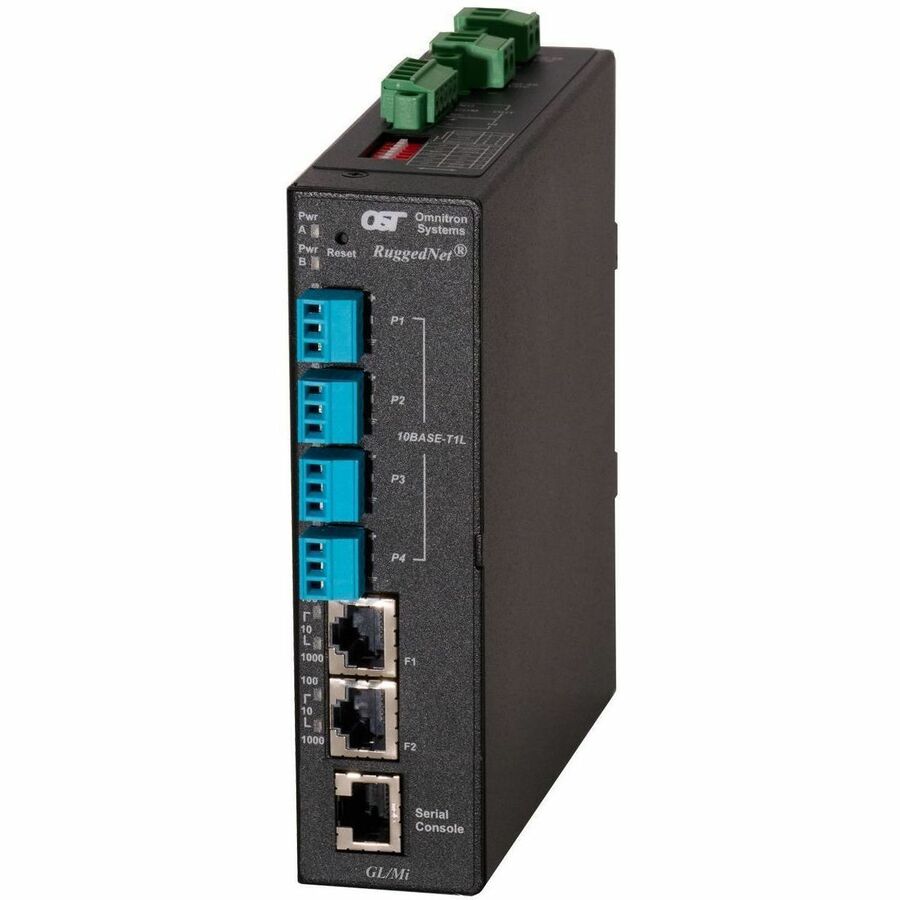

RuggedNet GL/Mi, 2x DC Terminal Power, Extended Temp
2 x 10/100/1000BASE-T, 4 x 10BASE-T1L, DC Terminal Powered, Lifetime Warranty
About This Product
Overview
The RuggedNet GL/Mi is a managed industrial gigabit Ethernet switch that features copper or fiber uplink ports and four single-pair 10BASE-T1L Ethernet copper user ports.
The Single Pair Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPE terminal ports or IEC 63171-2 SPE ports and two 10/100/1000 RJ-45 or 100/1000 fiber uplink ports.
The RuggedNet GL/Mi is a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.
The switch supports Dual Device mode, Directed Switch mode and Redundant Uplinks.
Dual Device mode that enables the module to operate as two independent and isolated Ethernet switches. In Dual Device mode, the GL/Mi provides separate and independent data traffic paths between the two uplink ports and four user ports.
Directed Switch mode directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports.
Redundant fiber or copper uplinks provide protection and restoration for critical applications. In the event of a failure on the primary uplink port, the switch will failover to the secondary uplink port. Once the failed uplink port has been restored, the switch will return to the primary uplink port. For daisy-chain applications, the second uplink port can be used to cascade multiple switches.
The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces.
IPv4 and IPv6 are supported on the switches. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists.
Email notification and alarm reporting is provided. The Small Form Pluggable (SFP) transceiver receptacle ports support 10/100/1000BASE-T and 1000BASE-T copper transceivers and 100Mbps and 1000Mbps standard, CWDM and DWDM fiber transceivers in a variety of distances and fiber types.
The switch can be wall or rack mounted using a wall mount bracket (8260-3) and shelf (8260-0) or DIN-rail mounted using the included DIN-rail mounting clip. The switch is available with dual DC input power.
- Effectively reduces downtime with improved network performance
- Terminal Block plug/connector type for convenient Ethernet Switch usage with added power supply dependability
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Quickly and easily set up a wired network with 6 networking ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Managed switch provides a reliable foundation for your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Quick Specifications
- Product Line
- RuggedNet
- Product Series
- GL/Mi
- Product Model
- 2912-1-40-2Z
- Package Type
- Retail
- Product Type
- Ethernet Switch
- Features
- Access Control List Broadcast Storm Control
- Total Number of Network Ports
- 6
- Network (RJ-45)
- Yes
