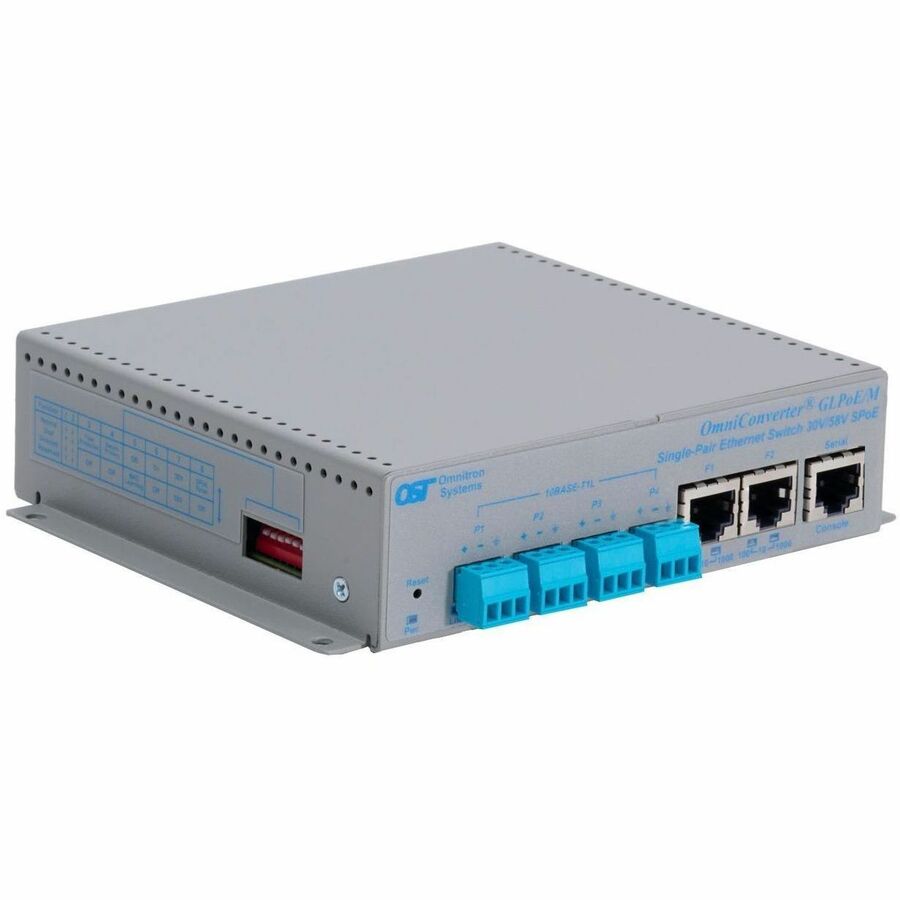

OmniConverter GLPoE/M, DC Terminal Power
2 x 100/1000BASE-X, 4 x 10BASE-T1L SPoE, DC Terminal Powered, Lifetime Warranty
About This Product
Overview
The OmniConverter GLPoE/M is a managed Single Pair Power over Ethernet (SPoE) switch that is IEEE 802.3cg compliant and features copper or fiber uplink ports and four single-pair 10BASE-T1L copper SPoE user ports.
The Single Pair Power over Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPoE terminal ports or IEC 63171-2 SPoE ports and two 10/100/1000 RJ-45 or 100/1000 fiber SFP uplink ports.
The GLPoE/M SPoE user ports detect and classify 30VDC class 10 - 12 and 58VDC class 13 -15 powered devices through DIP-switch selection.
The switch supports Dual Device mode, Directed Switch mode and Protected Uplinks.
Dual Device mode enables the module to operate as two independent and isolated Ethernet switches. In Dual Device mode, the GLPoE/M provides separate and independent data traffic paths between the two uplink ports and four user ports.
Directed Switch mode directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports.
The switch supports protected uplinks using industrial ring Media Redundancy Protocol (MRP) or Spanning Tree Protocol or Redundant uplinks for high availability industrial network applications.
For daisy-chain applications, the second uplink port can be used to cascade multiple switches.
The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. IPv4 and IPv6 are supported on the switches. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists.
Email notification and alarm reporting is provided. The Small Form Pluggable (SFP) transceiver receptacle ports support 10/100/1000BASE-T and 1000BASE-T copper transceivers and 100Mbps and 1000Mbps standard, CWDM and DWDM fiber transceivers in a variety of distances and fiber types.
The switch can be wall mounted, rack mounted using a shelf (8260-0) or DIN-rail mounted using the DIN-rail mounting clips (8251-0). The switch is available with an external 100 to 240V AC power adapter or with a DC terminal connector.
- Effectively reduces downtime with improved network performance
- Terminal Block plug/connector type for convenient Ethernet Switch usage with added power supply dependability
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Quickly and easily set up a wired network with 6 networking ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Compact form factor allows hassle-free and easy usage with increased efficiency
- Management capability provides control over setup and configuration of your network
- With Ethernet connections, give your home or small office network speeds of up to 10mbps per port
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Quick Specifications
- Product Line
- OmniConverter
- Product Series
- GLPoE/M
- Product Model
- 2930-1-40-9
- Package Type
- Retail
- Product Type
- Ethernet Switch
- Features
- Access Control List Broadcast Storm Control
- Total Number of Network Ports
- 6
- Network (RJ-45)
- Yes
