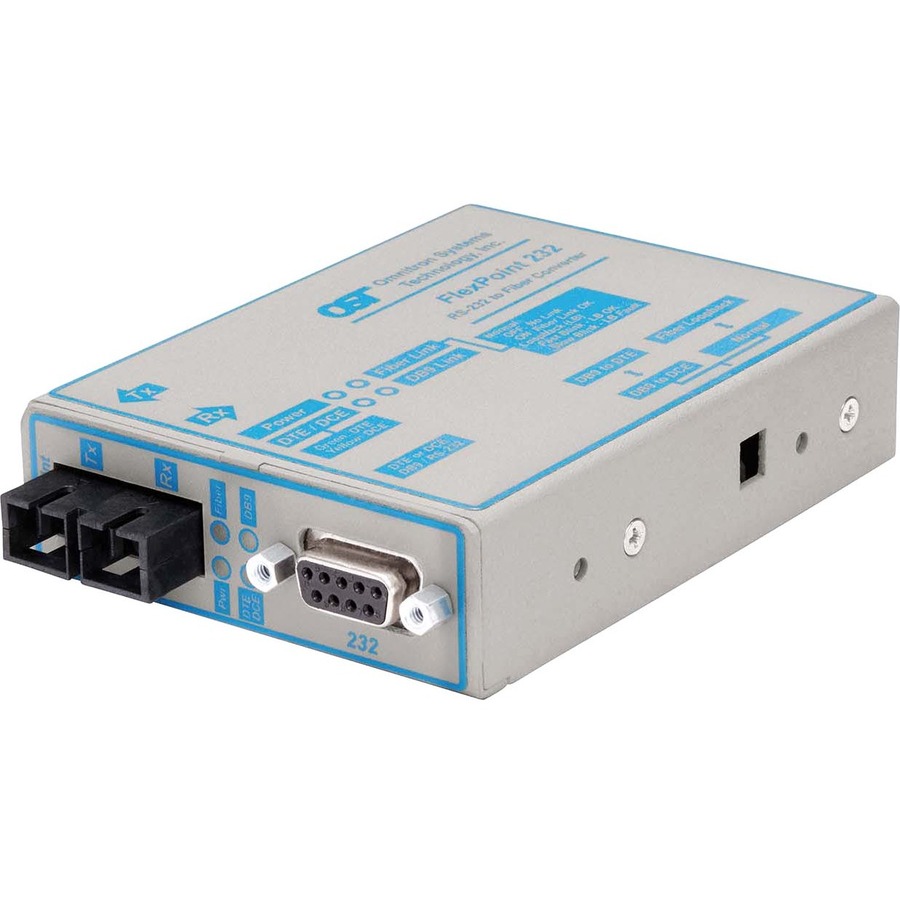

FlexPoint RS-232 Serial Fiber Media Converter DB-9 SC Multimode 2.5km
Manufacturer: Omnitron Systems
Mfr. Part: 4480-0
1 x RS-232; 1 x SC Multimode; No Power Adapter; Lifetime Warranty
About This Product
Overview
The FlexPoint 232 is a serial RS-232 to fiber media converter, automatically supporting speeds of up to 115,200 baud. Models are available with multimode or single-mode fiber port, capable of extending serial connection up to 28km.
The FlexPoint 232 supports both half-duplex and full-duplex modes of operation. It features a DTE/DCE configuration for easy connection to DTE or DCE devices using straight-through cabling. Also supports software flow control via XON and XOFF, and hardware flow control via RTS, CTS, DCD, DTR and DCR. It can be mounted stand-alone utilizing optional wall-mounting hardware. It can also be rack-mounted using a 5-unit rack-mounting shelf or in a 14-unit FlexPoint Powered Chassis.
The FlexPoint 232 supports both half-duplex and full-duplex modes of operation. It features a DTE/DCE configuration for easy connection to DTE or DCE devices using straight-through cabling. Also supports software flow control via XON and XOFF, and hardware flow control via RTS, CTS, DCD, DTR and DCR. It can be mounted stand-alone utilizing optional wall-mounting hardware. It can also be rack-mounted using a 5-unit rack-mounting shelf or in a 14-unit FlexPoint Powered Chassis.
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- Rack mounting enables you to organize wires & secure cables for professional installation
Quick Specifications
- Product Line
- FlexPoint
- Product Series
- 232
- Product Model
- 4480-x
- Package Type
- Retail
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Number of SC Ports
- 1
- SC Port Type
- Duplex
