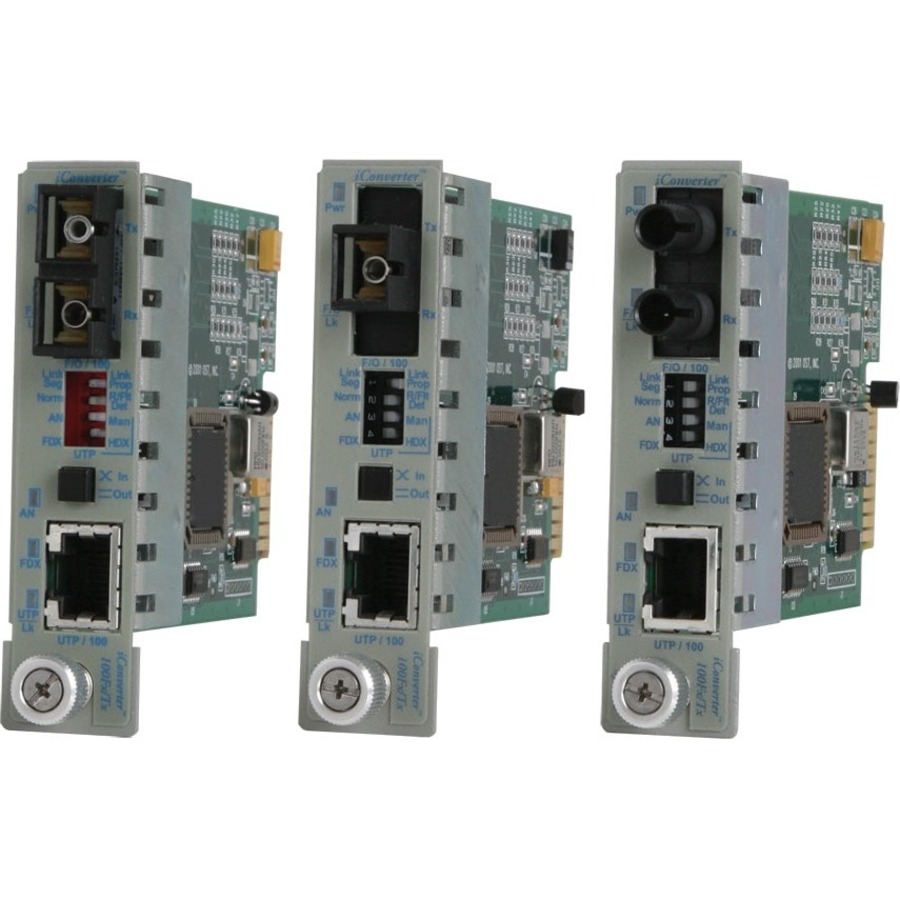

Omnitron Systems 100Base-Tx to 100Base-Fx Managed Ethernet Media Converter

The iConverter 100Fx/Tx managed media converters are members of the modular iConverter product family, and provide 100BASE-TX UTP to 100BASE-FX fiber conversion.

The iConverter 100Fx/Tx models are available with multimode, single-mode and single-fiber options. They support ST, SC and LC connectors. The UTP port supports 100BASE-TX in either Full or Half-Duplex mode. A UTP crossover switch eliminates the need for a crossover cable and facilitates connectivity to network equipment such as hubs, switches and workstations.

The 100Fx/Tx features user-selectable Link Propagate, Link Segment, Remote Fault Detection and Symmetrical Fault Detection modes to facilitate quick fault detection, isolation and reporting.

iConverter 100Fx/Tx modules are hot-swappable and can be mounted in a 19-Module (2U high) or 5-Module (1U high) rack-mountable chassis (19-inch or 23-inch) with any combination of redundant AC, 24VDC or 48VDC power supplies. They can also be mounted in a 2-Module AC or 18 to 60VDC powered chassis, or in a 1-Module AC/DC powered chassis.

The iConverter family of managed fiber access media converters are used in Service Provider access networks and Enterprise LANs. iConverter media converters provide fiber connectivity with copper-to-fiber, multimode fiber to single-mode fiber, or dual fiber to single-fiber conversions.
