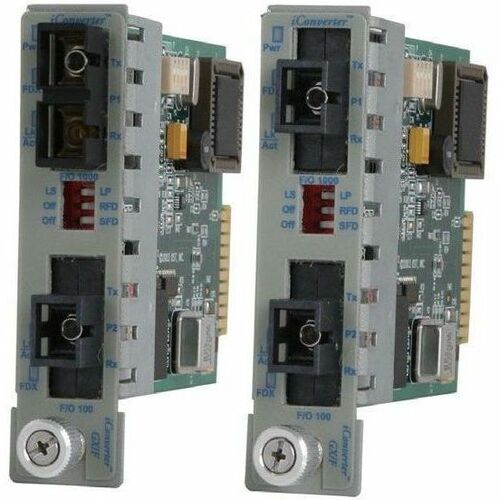

Omnitron Systems iConverter GX/F Transceiver/Media Converter

iConverter® GX/F | Gigabit to Fast Ethernet Managed Fiber-to-Fiber Converter/Transponder

The iConverter GX/F managed fiber-to-fiber Gigabit to Fast Ethernet converter/transponder is a member of the modular iConverter product family. The GX/F provides fiber and rate conversion between Gigabit Ethernet fiber and Fast Ethernet fiber, enabling seamless integration between Gigabit Ethernet and legacy Fast Ethernet networks.

The GX/F also functions as a fiber repeater supporting the three Rs (regeneration, retiming and reshaping). Multiple GX/F modules can be cascaded to extend total network distances.

iConverter GX/F models support multimode and single-mode dual fiber with SC and LC connectors; and single-mode single-fiber with SC connectors.

The iConverter GX/F features two 10/100 Ethernet backplane ports to provide connectivity to adjacent modules for network expansion and for in-band connectivity to an iConverter Network Management Module.

The iConverter GX/F advanced features include IEEE 802.1Q VLAN, 802.1p Quality of Service prioritization and Port Access Control, which provides the ability to enable or disable individual ports to control delivery of services. The GX/F also supports port-level MIB statistics reporting real-time packet statistics, performance and operational monitoring.

The GX/F features user-selectable Link Propagate, Link Segment, Remote Fault Detection and Symmetrical Fault Detection modes to facilitate quick fault detection, isolation and reporting.

The iConverter GX/F can be used in managed or unmanaged applications. Management is accomplished by installing an iConverter Management Module (NMM2) or Network Interface Device (NID) in the same chassis. The management module provides access to all the advanced features available on the module.

The hot-swappable plug-in module can be mounted in a high-density 19 or 5-Module chassis with redundant AC and DC power supplies. It can also be mounted in a 2-Module or in a 1-Module chassis with AC or DC power input.

APPLICATION

In this application example, a new Gigabit Ethernet fiber switch needs to be connected to a legacy fixed fiber Fast Ethernet switch located across the campus.

At Building A, a single-mode gigabit fiber is connected to a fiber port on the new Gigabit Ethernet fiber switch. The fiber is terminated at Building B, where an iConverter GX/F media converters provides the Gigabit to Fast Ethernet conversion to the legacy fast Ethernet switch.

The iConverter GX/F supports Link Modes used to provide network notification of fiber and copper faults. Link failures on any port are propagated to managed network switches, notifying network administrators of link failure.
