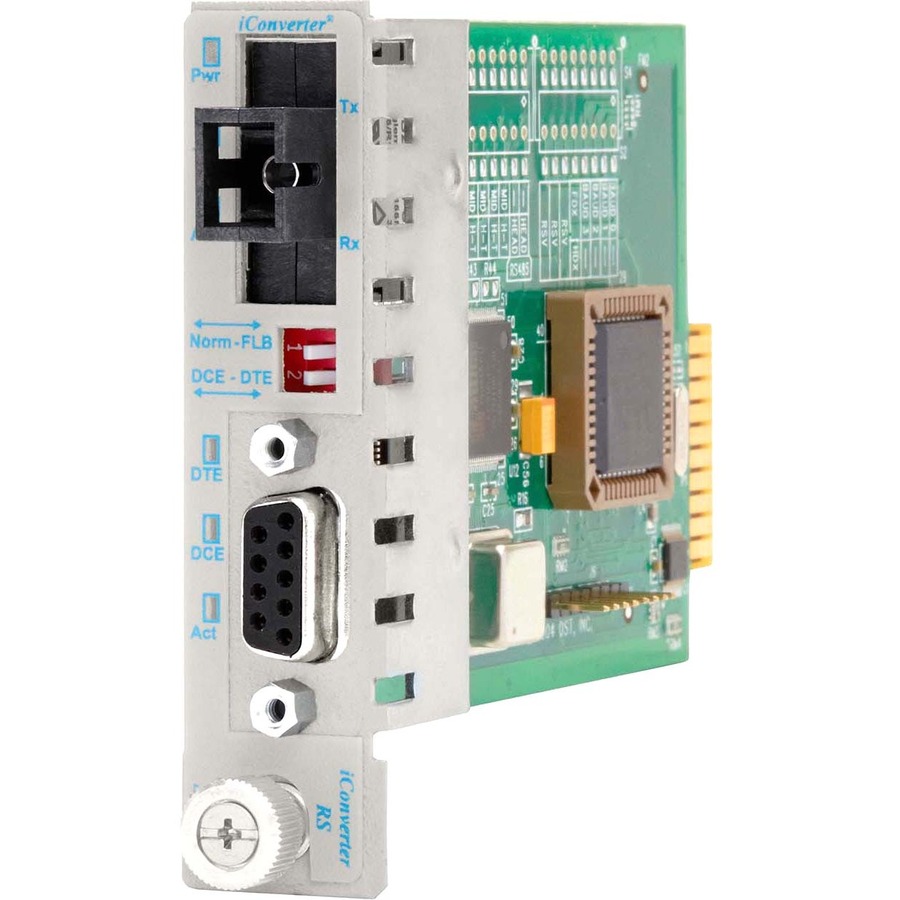

iConverter RS-232 Serial Single-Fiber Media Converter DB-9 SC Single-Mode BiDi 20km Module
Manufacturer: Omnitron Systems
Mfr. Part: 8770-1
1 x RS-232, 1 x SC Single-Mode Single-Fiber (1310/1550), Internal Module, Lifetime Warranty
About This Product
Overview
The Omnitron iConverter RS232 is a manageable serial RS-232 to fiber converter that transmits serial protocol over fiber media. Fiber transmission extends the serial signals up to 120km, and is immune from electrical and magnetic interference.
The serial port interface is available with either a DB-9 female connector or terminal block connector for field wiring.
The RS232 automatically detects the signal baud rate of the connected serial device, ranging from 110 to 921,600 baud. It also automatically adjusts to changes in the connected device's baud rate during operation without reconfiguration or interruption of service.
The serial port interface is available with either a DB-9 female connector or terminal block connector for field wiring.
The RS232 automatically detects the signal baud rate of the connected serial device, ranging from 110 to 921,600 baud. It also automatically adjusts to changes in the connected device's baud rate during operation without reconfiguration or interruption of service.
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- Rackmountable feature for convenient and safe installation of device
Quick Specifications
- Product Line
- iConverter
- Product Series
- RS232
- Product Model
- 8770-1-x
- Package Type
- Retail
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Number of SC Ports
- 1
- SC Port Type
- Simplex
