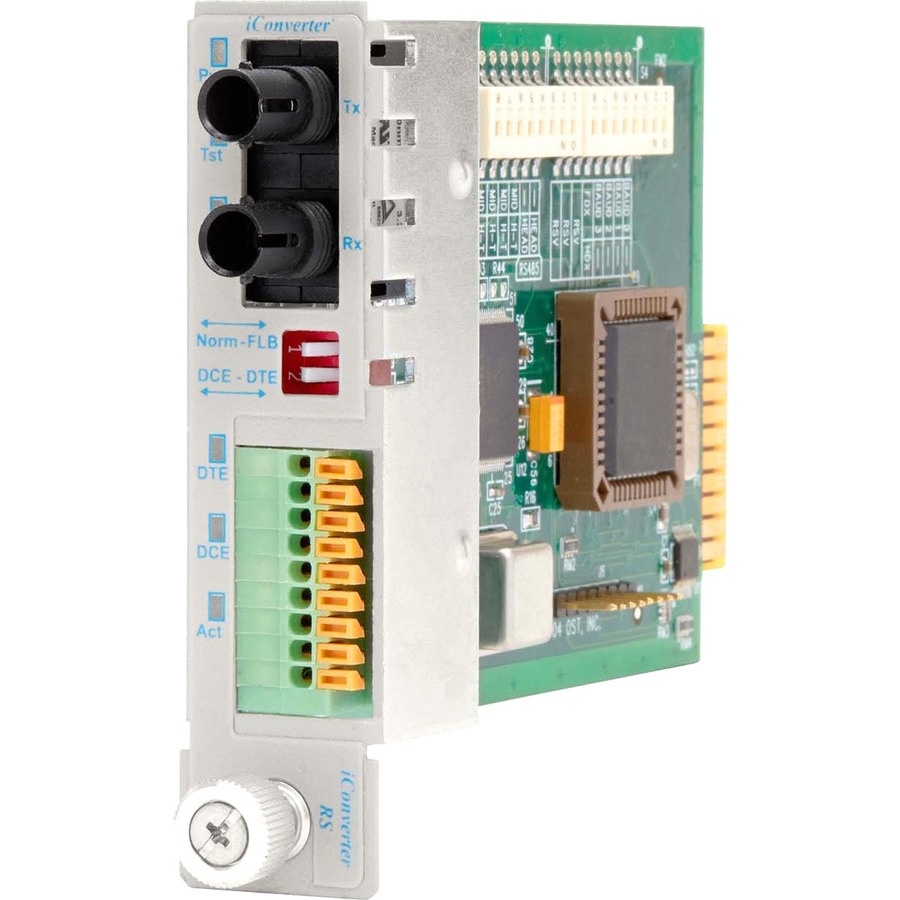

iConverter RS-422/485 Serial to Fiber Media Converter DB-9 ST Multimode 5km Module

The Omnitron iConverter RS422/485 is a managed serial RS-422 and RS-485 to fiber converter that transmits serial protocol over fiber media. Fiber transmission extends serial signals up to 120km, and is immune from electrical and magnetic interference.

The RS422/485 is available with a single-mode, multimode or single-fiber transceiver. The serial port interface is available with either a DB-9 female connector or terminal block connector for field wiring.

The RS422/485 automatically detects the signal baud rate of connected Full-Duplex serial device, ranging from 110 to 921,600 baud. It also automatically adjusts to changes in the connected device's Full-Duplex baud rate during operation without reconfiguration or interruption of service.

Half-Duplex RS-485 and Full-Duplex RS-485 (sometimes referred to as Multipoint RS-422) operations are supported via a configurable baud rate DIP-switch to match the master/slave communication timing.

• Supports baud rates ranging from 110 to 921,600 baud
• Serial interface available as DB-9 or Terminal Block connector for field wiring
• Features built-in configurable terminators
• Features configurable baud rate for Half-Duplex RS-485 and Full-Duplex RS-485 operation
• Supports RTS and CTS controls
• Supports Point-to-Point Half and Full-Duplex, Multi- Point Full-Duplex, and either Head, Tail or Mid-Position
• Features remote Fiber Loopback DIP-switch for easy testing of fiber link, even during serial transmission
• Management is available with the addition of a management module to the chassis
• Modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
• Lifetime Warranty and free 24/7 Technical Support
