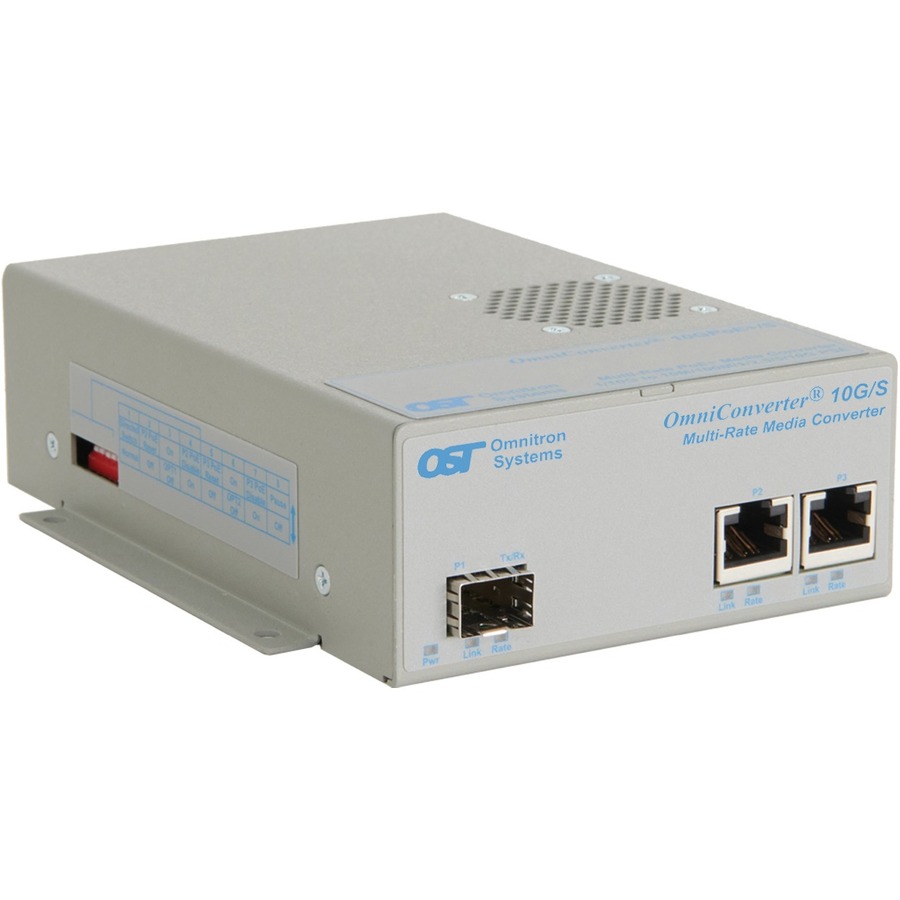

Omnitron Systems OmniConverter 10G/S 9190-0-12-9 Transceiver/Media Converter
2 x Network (RJ-45) - 10 Gigabit Ethernet - 10/100/1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T, 10GBase-X, 1000Base-X - 1 x Expansion Slots - SFP+ - 1 x SFP+ Slots - DC - Wall Mountable, DIN Rail Mountable, Tabletop, Rack-mountable, Shelf Mount
About This Product
Overview
The OmniConverter 10G/S are unmanaged 10G Ethernet media converters featuring one 1/10G SFP/SFP+ uplink port and one or two multi-rate RJ-45 user ports.
The RJ-45 user ports support multi-rate speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps, supporting frame sizes up to 10,240 bytes.
The 10G/S are well suited for the bandwidth demands imposed by IP cameras, access points and small cell devices on the market today.
The 10G/S feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fiber transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 2.5BASE-T, 5GBASE-T and 10GBASE-T copper transceivers and 1G and 10G multimode or singlemode fiber, dual or single-fiber transceivers in standard, CWDM and DWDM wavelengths.
The compact OmniConverter media converters can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting kit (8250-0). They can also be mounted on a 1U 19" rack-mount shelf. They are available with DC input power via terminal connectors or external 100 to 240VAC power adapter.
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Expand your network capabilities with this 2 transceiver/media converter
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- Tuck the device out of the way with its Wall Mounting feature
Quick Specifications
- Product Line
- OmniConverter
- Product Series
- 10G/S
- Product Model
- 9190-0-12-9
- Packaged Quantity
- 1
- Package Type
- Retail
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
