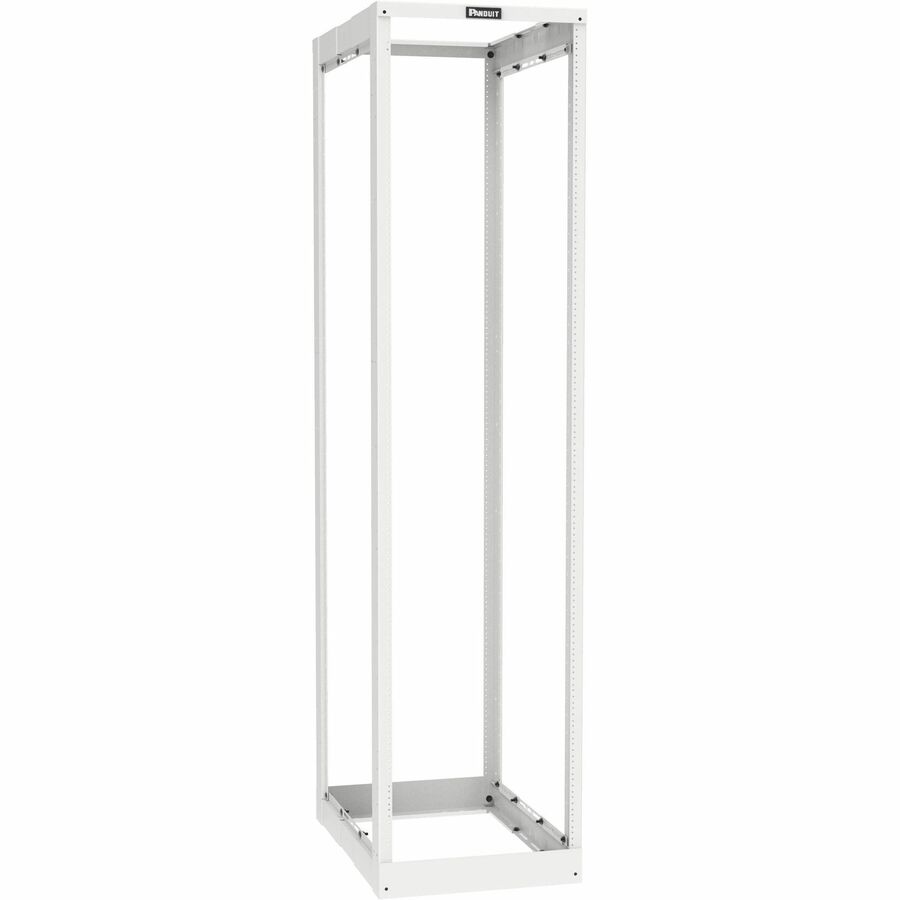

Panduit 4-Post Rack, Adjustable Depth, 52RU, #12-24 Threaded E-Rails, White
For PDU, Networking, Data Center, Telecommunication, Network Equipment - 52U Rack Height Open Frame - 4 Post - White - Steel - 2000 lb Static/Stationary Weight Capacity - 1 Year Warranty
About This Product
Overview
The adjustable depth 4-post rack shall meet EIA/ECA-310-E standards, be 45 or 52 RU, constructed of steel and capable of accepting 19 in. wide EIA equipment. The rack shall have adjustable depth from 23 in. to 42 in. in 0.5 in. increments. The equipment mounting rails shall be #12-24 threaded or cage nut square opening style mounting. The equipment mounting rails shall include printed rack unit numbering from bottom up. The rack shall accept shelve units and equipment brackets. The front and rear structural posts of the rack shall be capable of mounting NetRunner™ or PatchRunner™ 2 Vertical Cable Managers and accessories such as power distribution units, waterfalls and vertical tie-off brackets. The construction method shall ensure an electrically bonded structure for ease of grounding. The rack shall contain eight masked grounding locations for ease of selection for lug connection position.
- Welded steel construction: UL listed, 2000 lb. load capacity provides greater stability
- Self-squaring: Front-to-back braces are installed in two axes, helping to maintain squareness of the rack during assembly
- Inward facing feet: Reduces overall front-to-back footprint, aligning better to floor tiles
- Numerical rack unit identification: Allows for quick location of rack spaces speeding installation of rack mount items, racks are numbered from bottom up
- Fully bonded structure: Paint piercing hardware electrically bonds the rack when assembled, eliminating the need for additional bonding components
- PEM stud and carriage bolt construction: Eliminates the need for a second wrench, increasing speed and ease of assembly
- Multiple options for mounting accessories: Accessories such as PDU brackets, vertical tie-off brackets and waterfalls mount on posts or front-to-back braces for greater application flexibility
- Integrated masked grounding locations: Eight masked grounding locations available for optimal lug connection position
Quick Specifications
- Packaged Quantity
- 1 Piece
- Product Type
- Rack Frame
- Rack Type
- Open Frame
- Application/Usage
- PDU Networking Data Center Telecommunication Network Equipment
- Features
- Adjustable Depth Adjustable Mounting Rails Cable Management Powder Coated
- Rack Post Quantity
- 4
- Color Family
- White
- Product Color
- White
