Panduit Terminal Connector
Manufacturer: PANDUIT CORP
Mfr. Part: DNF10-250FIB-2K
2000 - 1 x Quick Disconnect - Yellow
About This Product
Overview

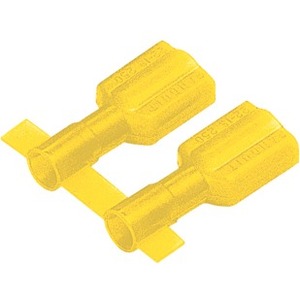

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in yellow, nylon standard receptacle housings. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.96" (24.4 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 2000.
- Built for versatility, terminal connectors support multiple wire sizes and configurations for flexible installations
- Tin contact plating provides smooth finish, reducing contact resistance for efficient signal transmission
Quick Specifications
- Packaged Quantity
- 2000
- Product Type
- Terminal Connector
- Connector Type
- Quick Disconnect
- Connector Details
- 1 x Quick Disconnect
- Contact Plating
- Tin
- Features
- Molded Flame Retardant
- Product Color
- Yellow
- Insulation Material
- Nylon
