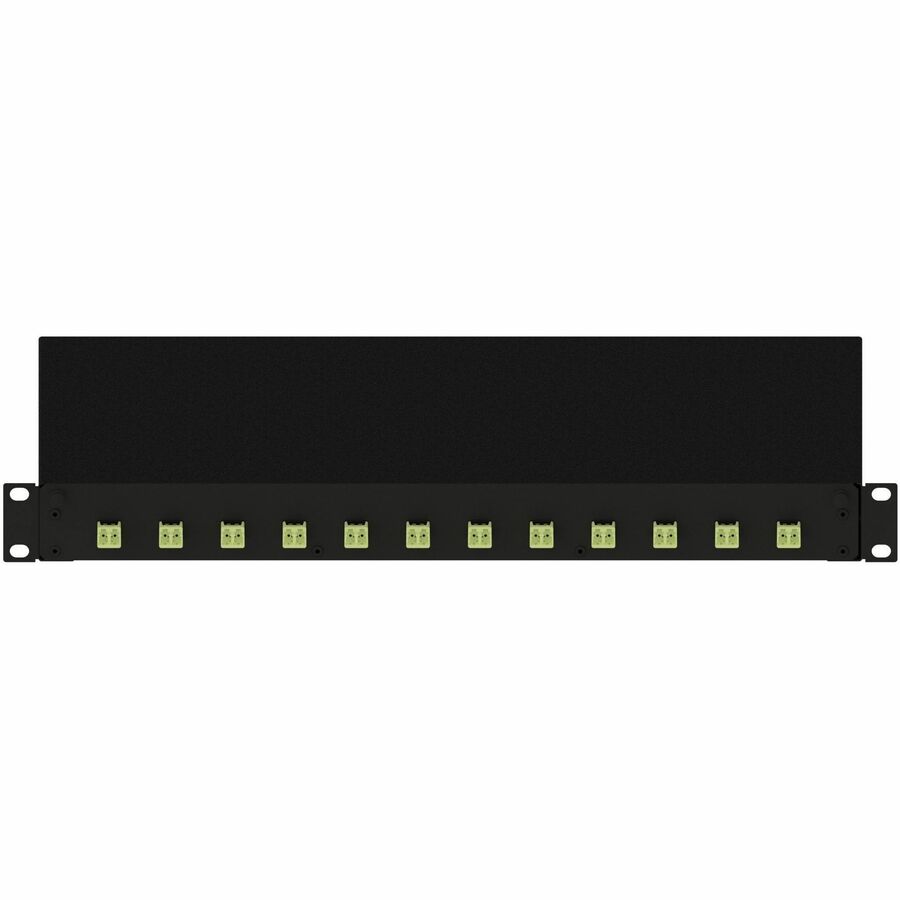

Panduit Fiber Drawer, 12 LC Duplex Adapters, Lime
12 Port(s) Duplex - 1U High - Optical Fiber - Black, Lime - Rack-mountable
About This Product
Overview
Opticom® Pre-Loaded Fibre Drawers shall provide a preconfigured, ready-to-install system for managing fibre optic terminations, connections and patching in a 1 RU rack mount enclosure. The pre-loaded enclosure accommodates both field termination and field splicing, and supports trunk cable entry via PG style glands, blown fibre glands and metric knockouts with rubber grommets. The pre-loaded enclosure is a two-piece design with a slide-out drawer for full access to all fibre terminations, easy moves, adds and changes and simple installation. The enclosure has silk-screened white areas adjacent to each adapter for individual Fibre Channel labelling and a similar silk-screen area for overall enclosure labelling. The enclosure has integral mounting brackets suitable for installation in any 19 inches wide EIA-310/IEC 60297 compatible rack or cabinet.
- Pre-loaded with fibre optic adapters Factory configured with duplex SC or LC adapters for fast and easy cabling and installation
- Slide-out drawer Slides forward a full 300mm for service access to all fibre terminations, connections and splices
- Field terminate or fusion splice Supports both field termination via pot-and-polish or Panduit® OptiCam® Connectors or field splicing (fusion or mechanical) with appropriate slack storage and cable management provisions
- Multiple cable entry methods Trunk and interconnect cable entry via PG11 glands, 5mm blown fibre glands, 20mm knockouts, or 30mm rubber grommets
- Two-piece, all-metal body construction Simple and economical installation with no loose components to misplace; improved protection over plastic fibre drawers
- Dedicated labelling areas Silk-screened white labelling areas for individual Fibre Channel identification plus overall enclosure labelling
Quick Specifications
- Product Line
- Opticom
- Packaged Quantity
- 1 Piece
- Product Type
- Fiber Drawer
- Media Type Supported
- Optical Fiber
- Total Number of Ports
- 12
- LC Port Type
- Duplex
- Color Family
- Dual Color
- Product Color
- Black Lime
