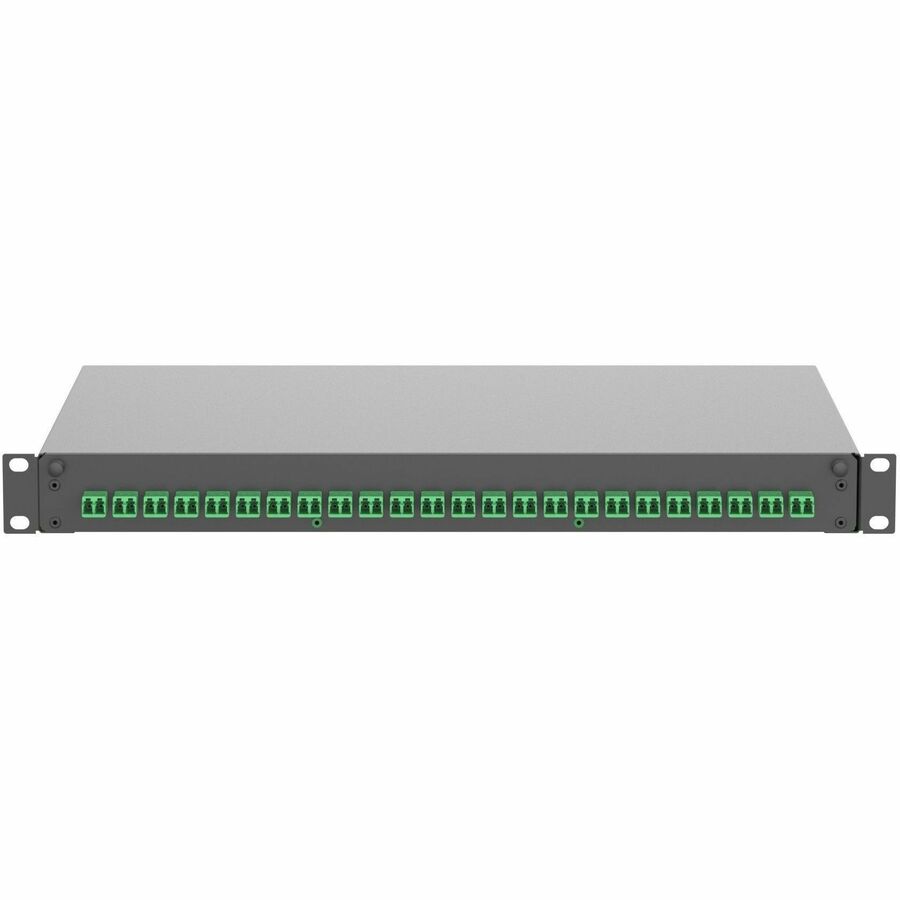

Panduit Fiber Drawer, 24 LC Duplex Adapters, APC Green
24 Port(s) Duplex - 1U High - Optical Fiber - Green - Rack-mountable
About This Product
Overview
Opticom® Pre-Loaded Fibre Drawers shall provide a preconfigured, ready-to-install system for managing fibre optic terminations, connections and patching in a 1 RU rack mount enclosure. The pre-loaded enclosure accommodates both field termination and field splicing, and supports trunk cable entry via PG style glands, blown fibre glands and metric knockouts with rubber grommets. The pre-loaded enclosure is a two-piece design with a slide-out drawer for full access to all fibre terminations, easy moves, adds and changes and simple installation. The enclosure has silk-screened white areas adjacent to each adapter for individual Fibre Channel labelling and a similar silk-screen area for overall enclosure labelling. The enclosure has integral mounting brackets suitable for installation in any 19 inches wide EIA-310/IEC 60297 compatible rack or cabinet.
- Pre-loaded with fibre optic adapters Factory configured with duplex SC or LC adapters for fast and easy cabling and installation
- Slide-out drawer Slides forward a full 300mm for service access to all fibre terminations, connections and splices
- Field terminate or fusion splice Supports both field termination via pot-and-polish or Panduit® OptiCam® Connectors or field splicing (fusion or mechanical) with appropriate slack storage and cable management provisions Multiple cable entry methods Trunk and interconnect cable entry via PG11 glands, 5mm blown fibre glands, 20mm knockouts, or 30mm rubber grommets
- Two-piece, all-metal body construction Simple and economical installation with no loose components to misplace; improved protection over plastic fibre drawers
- Dedicated labelling areas Silk-screened white labelling areas for individual Fibre Channel identification plus overall enclosure labelling
Quick Specifications
- Product Line
- Opticom
- Packaged Quantity
- 1 Piece
- Product Type
- Fiber Drawer
- Media Type Supported
- Optical Fiber
- Total Number of Ports
- 24
- LC Port Type
- Duplex
- Color Family
- Green
- Product Color
- Green
