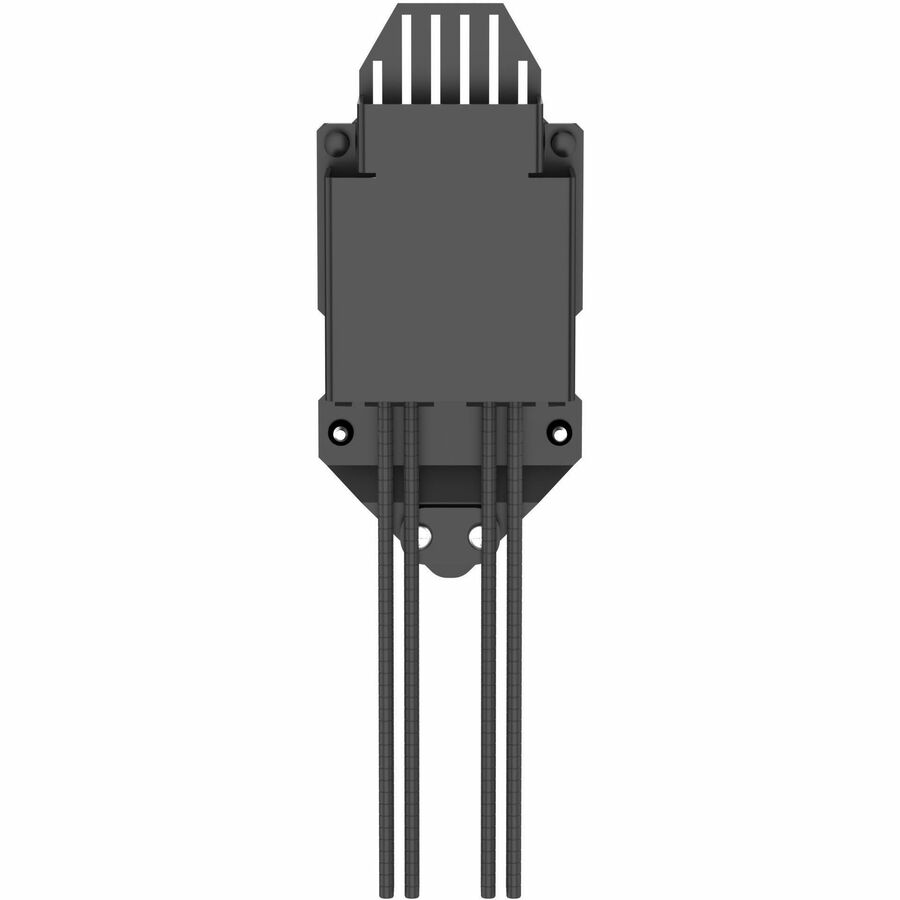

Panduit FlexCore ODF, Ingress Egress Kit

Overview

• Holder: Holds up to 36 Flex Tubes
• Pre-packaging: Includes (12) 5.0mm diameter Flex Tubes precut in length to 2'
• Breakout of full cable range: Breaks out cable diameter up to 1.3" (33mm)
• Flexibility of fiber type which can be used: 2 flat ribbons/Flex Tube, 48 loose 250 micron fibers/Flex Tube, 4 rollable ribbons/Flex Tube, (6) 900µm fibers/tube
• Breakout to multiple enclosures: Additional lengths of Protective Flexible Tubing are available to allow breakout to multiple enclosures in system
• Off-the-frame splicing: Ability to completely strip, breakout and splice cables to cassettes off the frame
• Mounting to vertical cable managers (VCM): Mounts onto 150mm VCM ingress/egress plates sold separately
• Lock down robustness: Secures high count and bulk cable outer jacket and central strength members
• Breakout cable count flexibility: Can break out multiple cable counts, from 24 - 864 fibers
