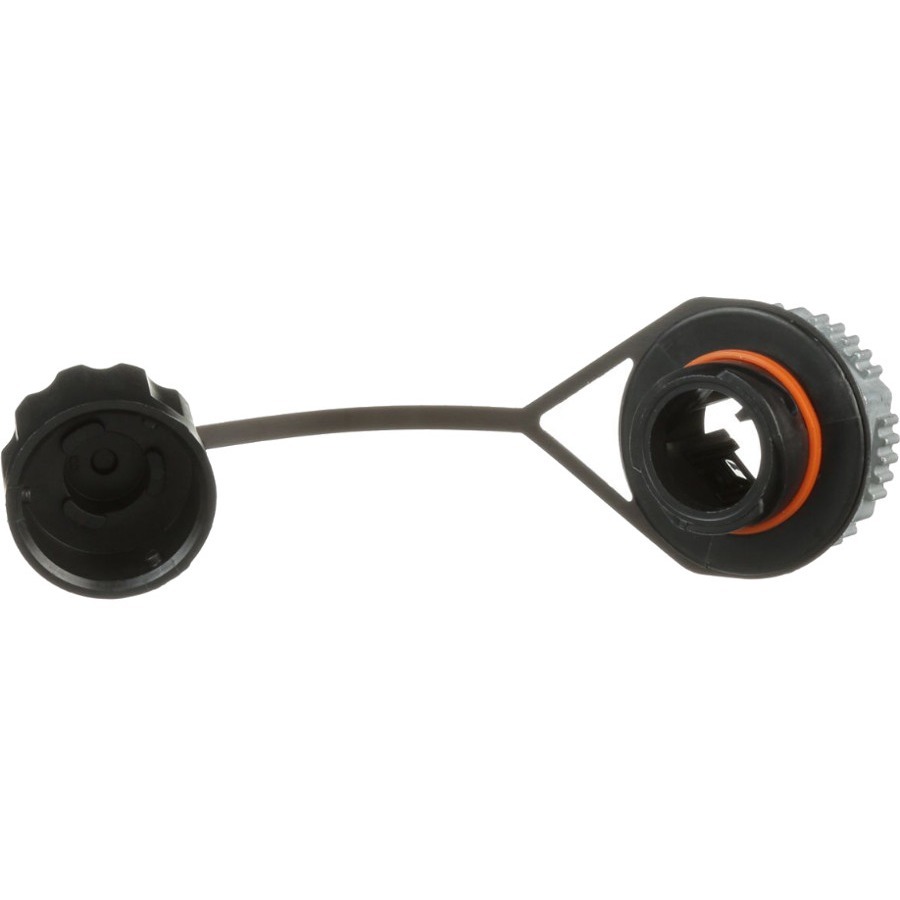

Panduit IndustrialNet TX5e Connectors
Manufacturer: PANDUIT CORP
Mfr. Part: IAEBH5ES
1 - 1 x RJ-45 Network Female - Shielding - Black
About This Product
Overview
The IndustrialNet™ Cat 5e shielded bulkhead 8-position connector with protective cap is ideal in manufacturing environments. The shielded bulkhead connector features a RJ45 jack. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. It terminates to a 4-pair, 24 AWG, 100 ohm twisted pair cable and does not require a punchdown tool.
- Bulkhead anti-rotation washer : Eliminates the potential for module rotation
- Connector mounting nut : Holds bulkhead safely and securely from inside of enclosure
- Robust construction : Plug contact plated with 50 microinches of gold
- Bayonet style interface : Provides positive reinforcement during mated condition; rated to 100 mating cycles
- Protective cap : Maintains IP67 seal during unmated connection
- Utilizes patented Giga-TX™ Technology : Optimizes performance by reducing conductor untwist to less than 1/8"
- Forward motion termination : Speeds installation and places no impact on critical components for maximum reliability
- Industry standard RJ45 interface : Familiar to end users
- No punchdown tool required : Can terminate with standard adjustable slipjaw pliers or optional termination tool (EGJT)
- Universal wiring scheme : Termination cap is color coded for T568A and T568B wiring schemes
Quick Specifications
- Product Line
- IndustrialNet
- Product Series
- TX5e
- Packaged Quantity
- 1
- Product Type
- Network Connector
- Connector Type
- RJ-45 Network - Female
- Connector Details
- 1 x RJ-45 Network Female
- Contact Plating
- Gold
- Shielding
- Yes
