IndustrialNet Industrial Cat 6A RJ45 UTP Bulkhead Connector
Manufacturer: PANDUIT CORP
Mfr. Part: IAEBH6X
1 - 1 x RJ-45 Network - Female - Black
About This Product
Overview

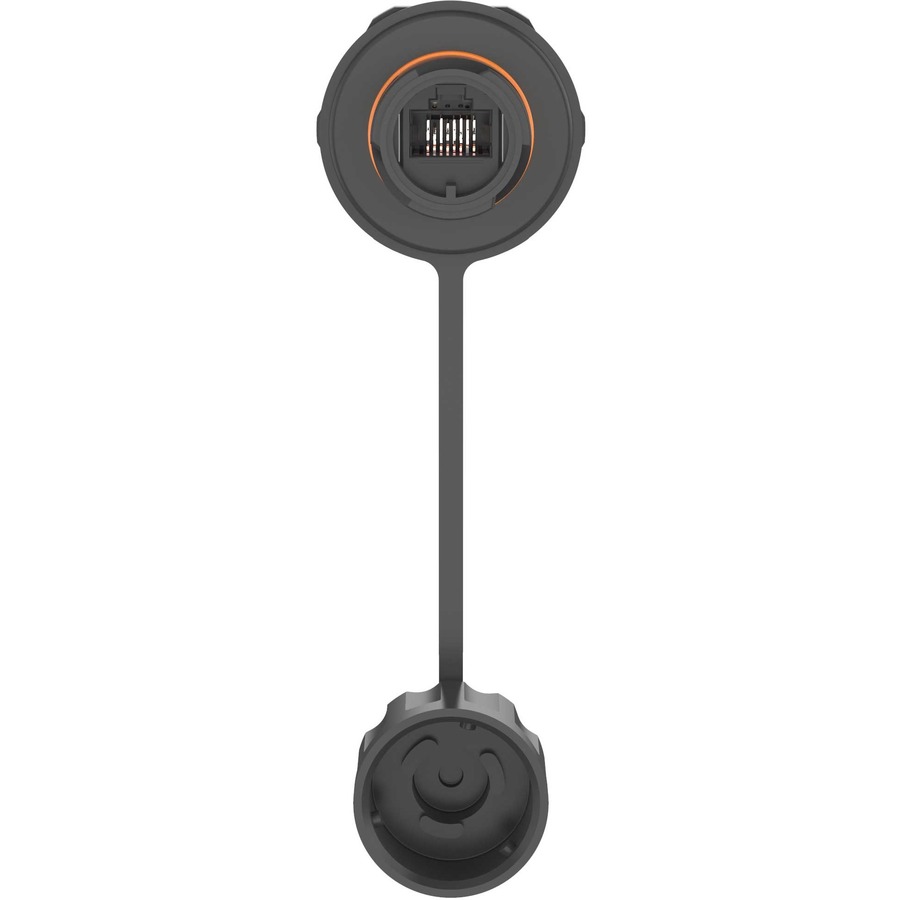

The IndustrialNet™ Cat 6A UTP bulkhead 8-position connector with protective cap is ideal in manufacturing environments. The UTP bulkhead connector features a RJ45 jack. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. It terminates to a 4-pair, 24 AWG, 100 ohm twisted pair cable and does not require a punchdown tool.
- Bulkhead anti-rotation washer:Eliminates the potential for module rotation
- Connector mounting nut:Holds bulkhead safely and securely from inside of enclosure
- Robust construction: Plug contact plated with 50 micro inches of gold
- Bayonet style interface: Provides positive reinforcement during mated condition; rated to 100 mating cycle
- Protective cap: Maintains IP67 seal during unmated connection
- Utilizes patented Giga-TX ™ Technology:Optimizes performance by reducing conductor untwist to less than 1/8"
- Forward motion termination: Speeds installation and places no impact on critical components for maximum reliability :Industry standard RJ45 interface Offers industry standard solution familiar to end users which speeds deployment
- No punchdown tool required :Can terminate with standard adjustable slipjaw pliers or optional termination tool (EGJT)
- Universal wiring scheme :Termination cap is color coded for T568A and T568B wiring schemes
- Standard mounting :Bulkhead connector fits into standard IEC 1-13/64" (30.5mm) diameter mounting hole or optional faceplate
Quick Specifications
- Product Series
- TX6A
- Packaged Quantity
- 1
- Product Type
- Network Connector
- Connector Type
- RJ-45 Network - Female
- Connector Details
- 1 x RJ-45 Network - Female
- Contact Plating
- Phosphor Bronze Gold
- Shielding
- No
- Ingress Protection (IP) Rating
- IP67
