IndustrialNet Copper Cable, Cat 6A, 4-Pair, 24/7 AWG, SF/UTP, CM
Manufacturer: PANDUIT CORP
Mfr. Part: ISFCH6X04ATL-UG
1000.66 ft Category 6a Network Cable for Patch Panel, Network Device, Control Panel, Rack Equipment - First End: Bare Wire - Second End: Bare Wire - 10 Gbit/s - Shielding - CM, CMX - 24/7 AWG - Teal - 1000
About This Product
Overview

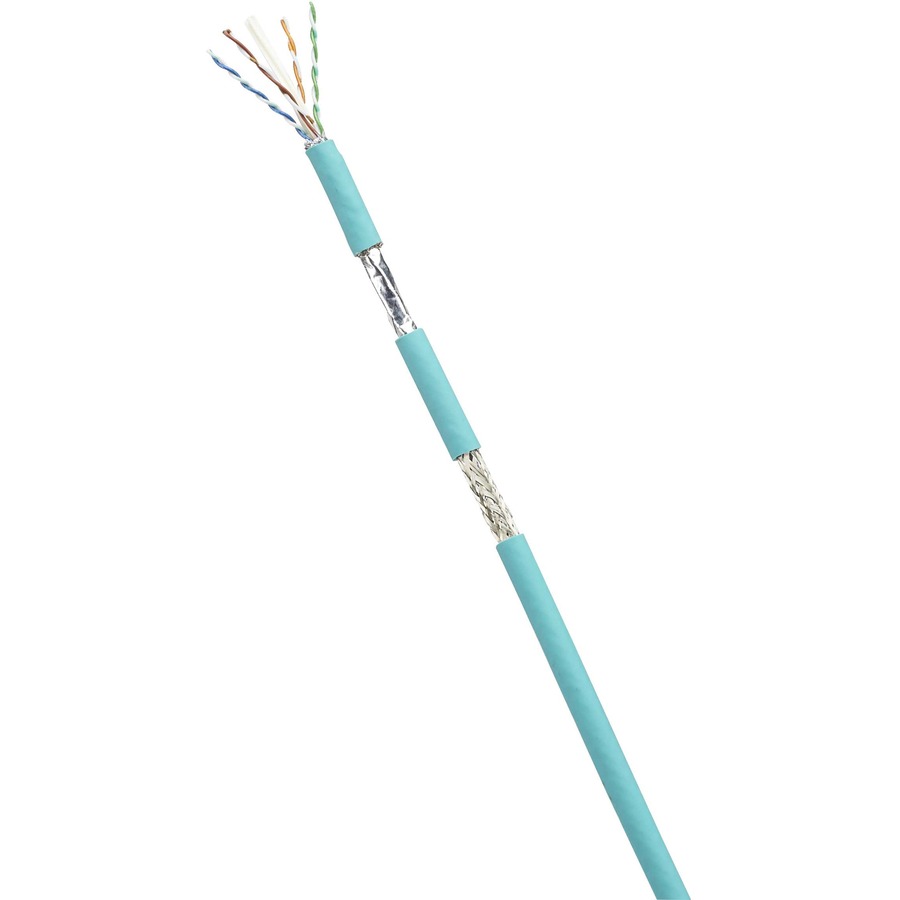

The Cat 6A SF/UTP copper cable is constructed of 24/7AWG stranded copper conductors with HDPE polyethylene insulation. The copper conductors are twisted in pairs and wrapped with a foam polypropylene tape to form a core. All four pairs are surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The cable is supplied 305 meters (1,000 feet) to a reel and teal.
- Third party tested:Cable has been tested by an independent laboratory and complies with the electrical standard requirements of IEC 61156-6 Category 6A and ANSI/TIA-568-C.2 Category 6A standards
- Reliability :Shielded SF/UTP cable construction protects against environmental elements that can cause electrical performance failures; stranded conductors for high flex applications and ease of installation; cable jacket is oil, sunlight, weld splatter, and abrasion resistant for enhanced chemical resistance and mechanical performance
- High flex applications :Life cycle tested for robotic and c-track use
- 600V on-machine applications:Rated for panel or on-machine applications when the space is shared with 600V high voltage power cables
Quick Specifications
- Packaged Quantity
- 1000
- Product Type
- Network Cable
- Cable Type
- Category 6a
- Cable Length
- 1000.66 ft
- Connector Type on First End
- Bare Wire
- Connector on First End Details
- Bare Wire
- Connector Type on Second End
- Bare Wire
- Connector on Second End Details
- Bare Wire
