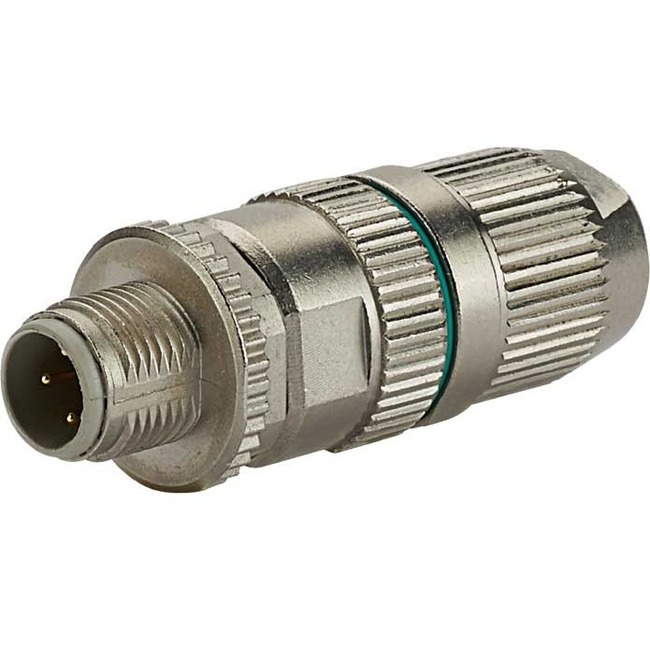

IndustrialNet Industrial M12 D-Code Field Term Modular Plug
Manufacturer: PANDUIT CORP
Mfr. Part: ISPS5E44MFA
1 - 1 x M12-D - Male - Shielding - Nickel, Chrome Plated - Metallic
About This Product
Overview
The M12 D-Code modular plug is field terminable for use with industrial grade, 26/7 - 22/7 AWG stranded, Cat 5e UTP or shielded copper cable. The terminable plug is constructed of a zinc cast housing with a 360° shield. The plug has an ingress protection rating of IP65/IP67 and offers an extended temperature range as required for more demanding applications. It is easily attachable without any special tools and is capable of termination to a 2-pair stranded or solid twisted-pair copper cable.
- Robust construction :Zinc die cast housing with 360° shielding for secure data transmission in high noise (EMI/RFI) environments; provides an ingress protection rating of IP65/IP67 for use in harsh environments
- Field attachable :Can be terminated in seconds without any special tools and is re-terminable up to 10 times with the same gauge cable
- Extended temperature range :-25°C to 85°C (-13°F to 185°F)
Quick Specifications
- Packaged Quantity
- 1
- Product Type
- Network Connector
- Connector Type
- M12-D - Male
- Connector Details
- 1 x M12-D - Male
- Connector Plating
- Nickel Chrome
- Shielding
- Yes
- Ingress Protection (IP) Rating
- IP65 IP67
- Features
- PoE Stranded EMI/RF Protection
