Panduit Terminal Connector
Manufacturer: PANDUIT CORP
Mfr. Part: LCC10-14AW-L
50 - 1 x Barrel Plug - Tin Plated
About This Product
Overview

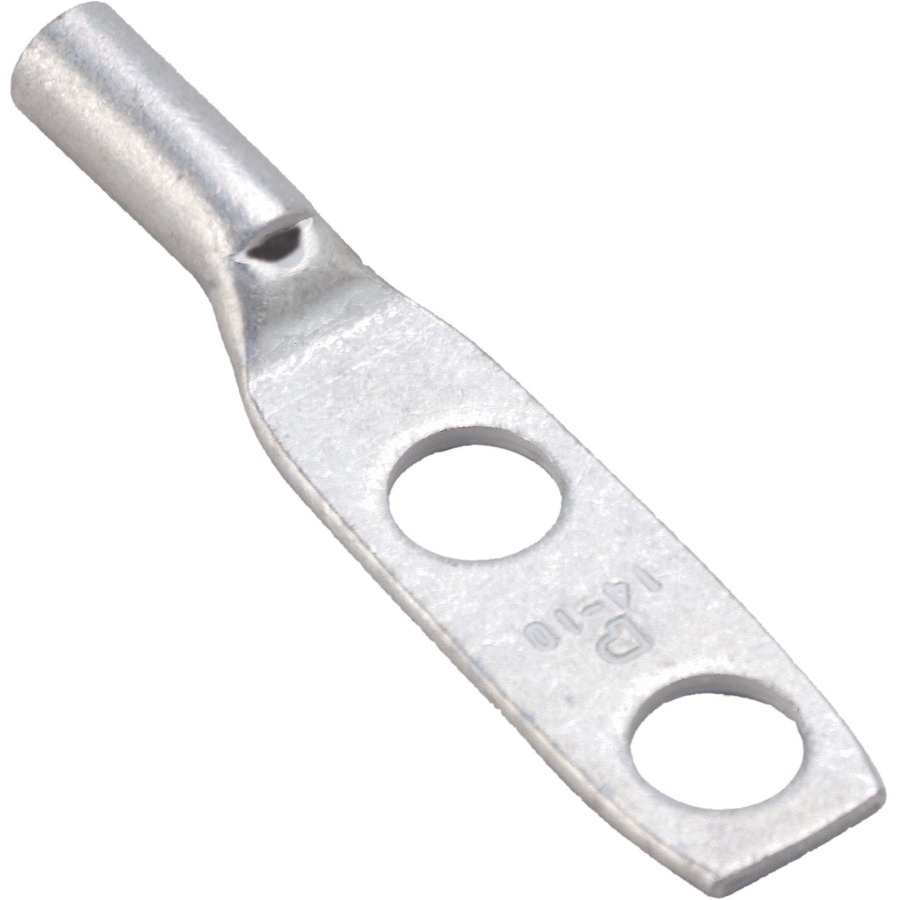

Two-hole, long barrel lug with window, #10 AWG wire, 1/4" stud hole, .63" hole spacing.
- Meets TIA-607-B requirements for network systems grounding applications
- Tested by Telcordia - meets NEBS Level 3 with AWG conductor
- Requires crimping tools and dies, see pages M.46 - M.49
- UL Listed and CSA Certified with AWG conductor for use up to 35 KV** and temperature rated 90°C when crimped with Panduit and specified competitor crimping tools and dies
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- Available with NEMA hole sizes and spacing
Quick Specifications
- Packaged Quantity
- 50
- Product Type
- Terminal Connector
- Connector Type
- Barrel Plug
- Connector Details
- 1 x Barrel Plug
- Connector Plating
- Tin
- Product Material
- Copper
- Width
- 0.4"
- Length
- 1.9"
