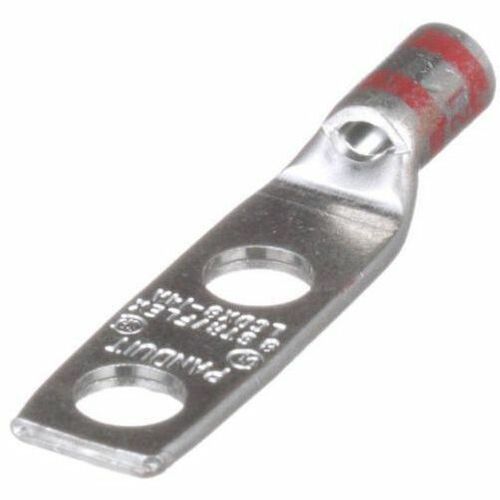

Panduit Pan-Lug Copper Compression Connectors - Lugs
Manufacturer: PANDUIT CORP
Mfr. Part: LCDX8-14A-L
50 - 1 x Terminal - Tin Plated - Red
About This Product
Overview
The LCDX8-14A-L Tin-Plated Copper Compression Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
- Can be used with code conductor and flex conductor class: G, H, I, K, M and Diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies
- American Bureau of Shipping approved
- Available with NEMA hole sizes and spacing
Quick Specifications
- Product Line
- Pan-Lug
- Packaged Quantity
- 50
- Product Type
- Terminal Connector
- Connector Type
- Terminal
- Connector Details
- 1 x Terminal
- Connector Plating
- Tin
- Compatible Wire Gauge
- 8 AWG
- Features
- Corrosion Resistant
