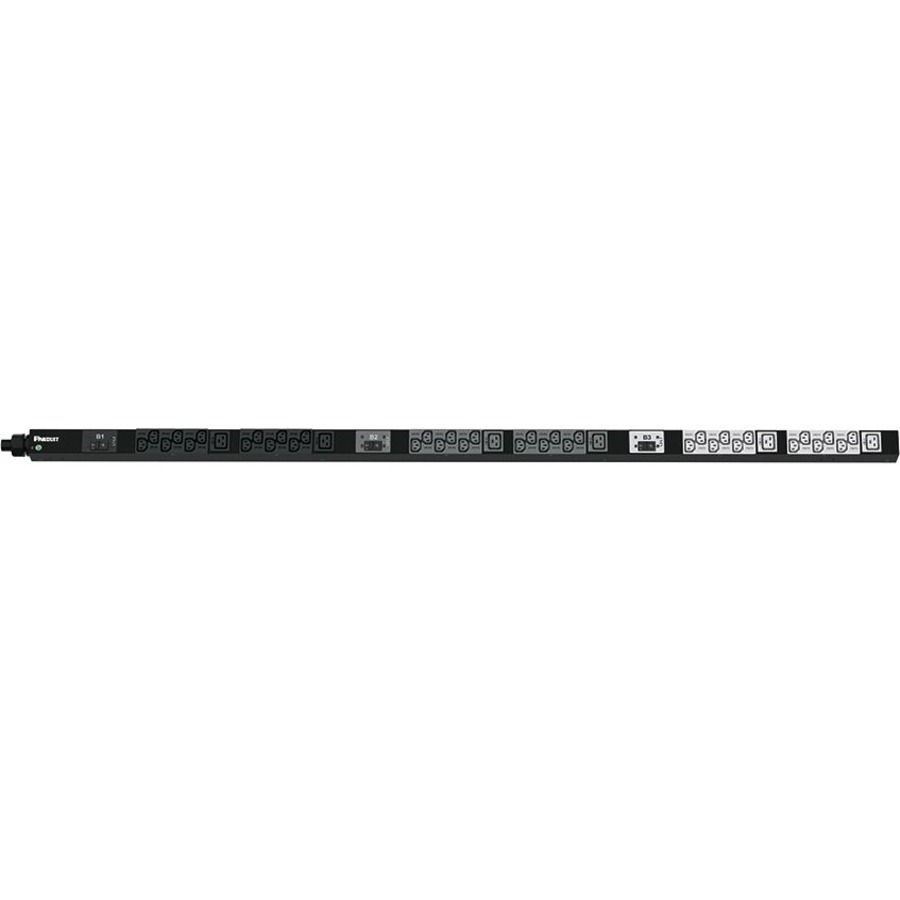

Panduit P42B28M Vertical Power Distribution Unit
Manufacturer: PANDUIT CORP
Mfr. Part: P42B28M
Basic - Hubbell CS8365C - 6 x IEC 60320 C19, 36 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack-mountable
About This Product
Overview
The 50A, 208V vertical 3 Phase Delta PDU has (36) C13 and (6) C19 receptacles, a 10' (3m) power cord with a Hubbell CS8365C plug, and measures 68.9"L x 2.0"W x 2.1"D (1750.1mm x 50.8mm x 53.3mm).UL Listed. Color: Black
- Outlet Density: Meets demands of densely packed IT equipment in rack or cabinet space
- Form Factor: Optimal form factor takes up less space for efficient rack space utilization
- Operating Temperature: 60 °C ambient at full load for operational reliability
- Cable Retention: Our innovative cable tie accepting outlets allow for secure cord retention (C13 & C19 only) using a cable tie for added safety and security. (Panduit part number: PLT2I-C0)
- Circuit Breakers: Protects data center equipment for increased reliability by interrupting potentially hazardous circuit over-current conditions
- Color Coded Circuits: Easily identify phase to outlet banks to aid in fault isolation or load balancing
- Multiple input plug options: A full breadth offering to seamlessly interoperate with existing building power wiring schemes
- Multiple Mounting options: Enables simple out of the box commissioning and flexibility with Panduit cabinets and industry standard mounting features enabling installation into third party cabinets
- Mounting buttons: Allows tool-less mounting of rack PDUs for faster installations on vertical 0U units
- External Chassis Ground: Meets NEC requirements and installation guidelines for IT equipmen
Quick Specifications
- Product Model
- P42B28M
- Packaged Quantity
- 1
- Product Type
- PDU
- PDU Type
- Basic
- Phase
- Three Phase
- Plug/Connector Type
- Hubbell CS8365C
- Receptacle Type
- IEC 60320 C19 IEC 60320 C13
- Receptacle Detail
- 6 x IEC 60320 C19 36 x IEC 60320 C13
