PanNet Copper Cable
Manufacturer: PANDUIT CORP
Mfr. Part: PUP6AHD04WH-G
1000 ft Category 6a Network Cable for Network Device - 10 Gbit/s - CMP, Plenum, CMP-LP - 23 AWG - White - 1000
About This Product
Overview

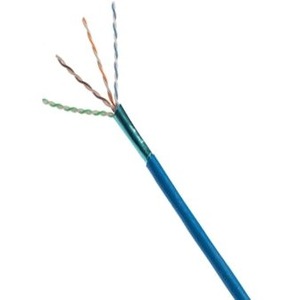

The TX6A™ Vari-MaTriX HD Cat 6A U/UTP Plenum copper cable is constructed of 23 AWG copper conductors with FEP insulation. The copper conductors shall be twisted in pairs. All four pairs shall be surrounded by a metallic Vari-MaTriX tape cut into segments of varying length and covered by a flame retardant PVC (CMP), White jacket. Packaged 1000 ft./305m on a reel.
- Vari-MaTriX HD Technology Best-in-class cable diameter delivers superior PSANEXT and PSAACRF suppression while retaining UTP EMI immunity
- Superior headroom warranty Provides the highest worst-case margins above the industry standard for both electrical and alien crosstalk performance
- High density cable design Improves fill capacity, cable management, reduces required bend radius and allows efficient use of pathways and spaces
- Extended temperature range Allows operation in 105°C (221°F) ambient environment providing error-free performance in high-density cabinets and large cable bundles running PoE+ or PoE++ applications
- Highest port density All testing and headroom based on 48-port/1RU panels
- Descending length cable markings Easy identification of remaining cable to reduce installation time and cable scrap
Quick Specifications
- Product Line
- TX6A
- Packaged Quantity
- 1000
- Product Type
- Network Cable
- Cable Type
- Category 6a
- Cable Length
- 1000 ft
- Connector Type on First End
- Bare Wire
- Connector Type on Second End
- Bare Wire
- Shielding
- No
