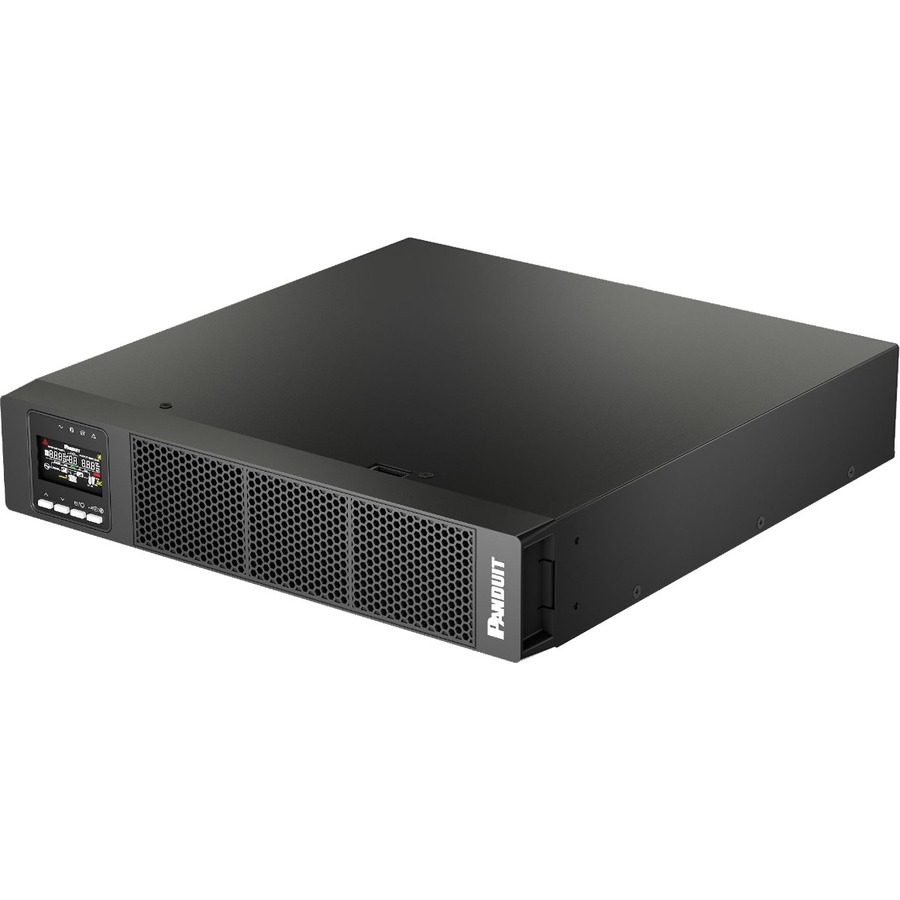

Panduit SmartZone UPS 1-3kVA Lithium Ion
2U Compact, Tower/Rack Convertible - AVR - 4 Hour Recharge - 7.50 Minute Stand-by - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC Output - Single Phase - Serial Port - 6 x NEMA 5-15R Receptacle(s)
About This Product
Overview
The Panduit®SmartZone™Intelligent Rack UPS with compact, high capacity, and long life Lithium Ion battery, 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double Conversion system that delivers highly efficient and reliable power protection and backup power for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions and complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
- Experience higher efficiency with lower energy cost
- Up to 7.50 minute runtime on full load to preserve critical data from power shortage interruptions
- Prevent critical data loss by staying powered during a blackout with up to 1350 W load capacity
- 1500 VA load capacity provides sufficient backup during power failures
- Overload protection feature usually operates on an inverse time curve where the stable time becomes less as the current increases
- 4 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
- Replaceable battery for maximum feasibility and better usability
- Lithium-Ion (LiFePO4) battery chemistry delivers energy to the computer through an easily controlled reaction
- NEMA 5-15P plug/connector type for a secure, feasible operation
- NEMA 5-15R receptacle type offers ease of operation with maximum efficiency
Quick Specifications
- Product Model
- U02N11L
- Product Type
- Line-interactive UPS
- AVR
- Yes
- Plug/Connector Type
- NEMA 5-15P
- Receptacle Type
- NEMA 5-15R
- Receptacle Detail
- 6 x NEMA 5-15R
- Overload Protection
- Yes
- Transfer Time
- 6 ms
