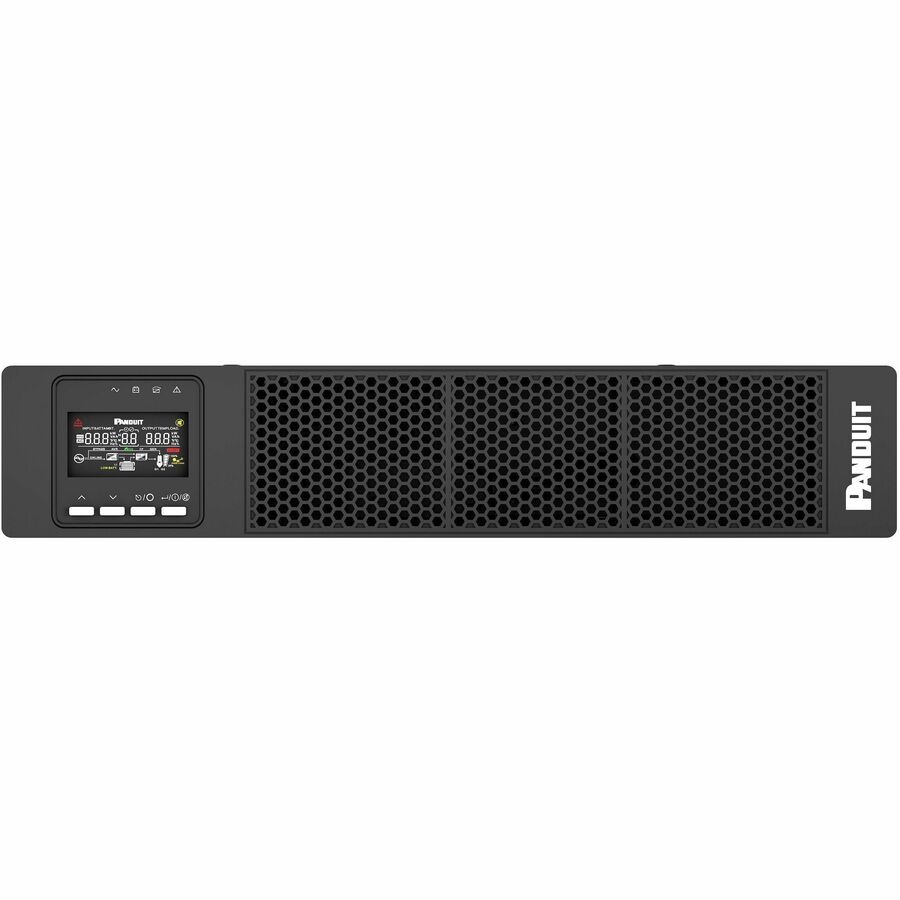

Panduit SmartZone U02N12V 2000VA Tower/rack convertible UPS

This pure sine wave Double Conversion 1-3 KVA UPS delivers highly efficient and reliable power protection and backup for your computer IT equipment. The UPS features a maintenance-free VRLA battery and is a 1-3kVA single-phase 120/230 volt unit. The pure Online Double Conversion system provides constant excellent electrical performance and comes standard with enhanced intelligent monitoring and network functions. The unit complies with ENERGY STAR® 2.0, EMC, and safety standards to meet the continually growing power demands of Data Center, Enterprise, and Edge IT Infrastructure.

Key Features and Benefits | Rack/Tower convertible

Support rack/tower installation with rotatable colorful LCD display.

Online Double Conversion with fully digital control (EMEA unit only)

Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection

Wide input voltage range

110-300 VAC for EU units and 55-150 VAC for North America units, covering extended voltage range, applicable for severe situation such as large power grid fluctuation

High efficiency

Up to 96.5%, reducing the energy waste and the cost of electricity

Energy savings

High Efficiency on Smart ECO mode for Online Double Conversion models

Green design

RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units

Output unity power factor

Means more active power for IT equipment load

Input power factor

Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)

Expandable battery packs:

Allows to connect maximum four external battery packs, extending the UPS backup running time

Intelligent Battery Management:

The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life

EPO function (Emergency Power Off)

Allows to quickly and easy shut down the UPS when emergency event occurs

Generator compatible

Wide input frequency and voltage, supports connecting to generators, ensuring the uninterruptible operation

Hot-Swappable battery design

Can perform the replacement of battery cartridge without powering down the UPS

Cold start function

Allows to boot up the UPS without mains input but with batteries

Intelligent fan speed regulation

Automatically adjustment of fan speed due to the ambient temperature and load percentage

Programmable outlet group with Smart Load Shedding

Loads connected to the programmable group can lose power first, saving more energy and extending the runtime for critical load. Smart Load Shed allows logical group shutdown with time or load.

Segment colorful LCD

Colorful LCD with four buttons and LED indicators, providing intuitive display

Multiple communication interface

RS232/USB/intelligent slot, realizing communication and monitoring function

Comprehensive protection function

Short-circuit, overload, overheat, battery overcharge and over discharge, output low voltage, fan fault alarm and RJ45 surge protection
