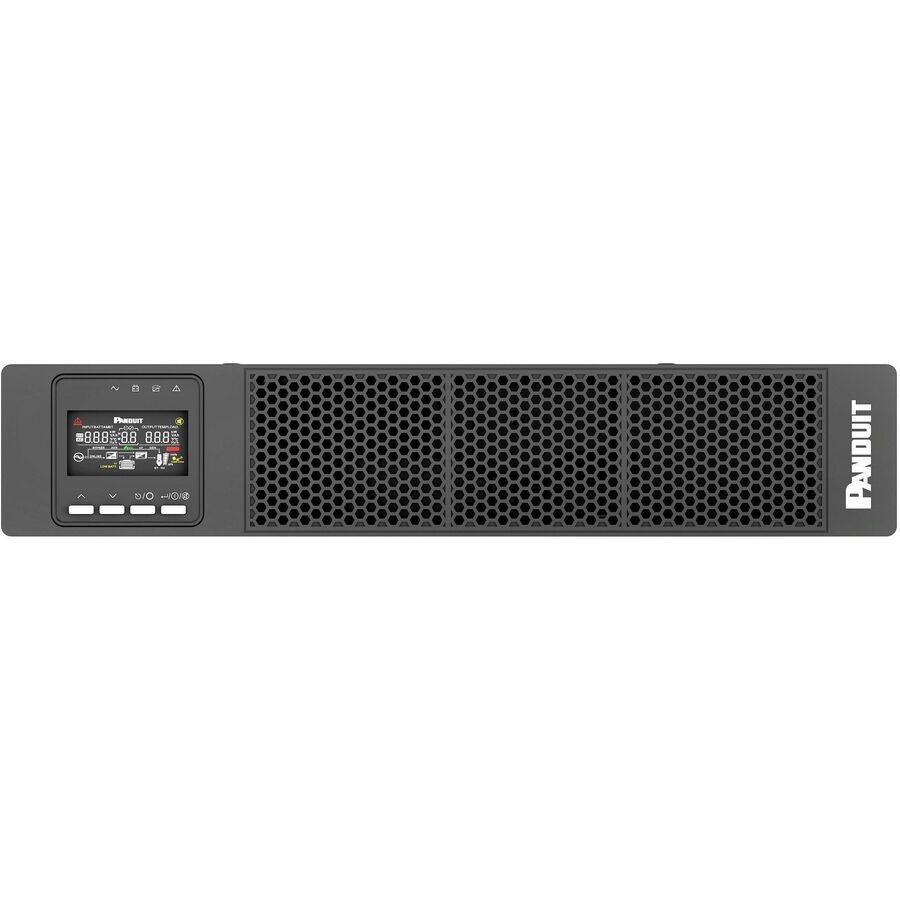

Panduit UPS Lithium-Ion
Tower/Rack Convertible - 230 V AC, 120 V AC Input - 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - Single Phase - Pure Sine Wave - Serial Port - USB - LCD Display - 2 x NEMA L6-20R, 1 x NEMA L6-30R Receptacle(s) - Intelligent Card Slot, RS-232, SNMP
About This Product
Overview
The Panduit SteadySine™ Double Conversion UPS units are ideally suited to protect critical infrastructure in edge or distributed IT applications. When compared to traditional valve-regulated-lead-acid (VRLA) batteries, Lithium-Ion batteries shall offer greater power density, last up to three times longer, recharge quicker, and can endure up to 10-times more discharge cycles. With a 5-year standard warranty, more than double the useful life, and significantly more runtime, the Panduit Lithium-Ion UPS stands at the top of its class.
- Rack/tower convertible: Support rack/tower installation with rotatable colorful LCD display
- Online double conversion with fully digital control (EMEA unit only): Provides stable and clean power with less ripple by filtering noise. Precise voltage regulation (±1% of nominal voltage).
- Wide input voltage range: Covering more voltage range, applicable for severe situation such as large power grid fluctuation
- High efficiency: Up to 96.5% for online models, reducing the energy waste and the cost of electricity
- Energy savings: High efficiency on Smart ECO mode for online double conversion models
- Green design: RoHS and reach, ENERGY STAR® 2.0 for North America
- Output unity power factor: Means more active power for IT equipment load
- Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
- Intelligent battery management: The most optimal curve with advanced algorithms prolonging the battery life
- EPO function (Emergency Power Off): Allows to quickly and easy shut down the UPS when emergency event occurs
Quick Specifications
- Product Line
- SteadySine
- Product Model
- U03S15L
- Packaged Quantity
- 1 Piece
- Product Type
- Double Conversion Online UPS
- Plug/Connector Type
- NEMA L6-20P
- Receptacle Type
- NEMA L6-20R NEMA L6-30R
- Receptacle Detail
- 2 x NEMA L6-20R 1 x NEMA L6-30R
- Dataline Protection
- RJ-45
