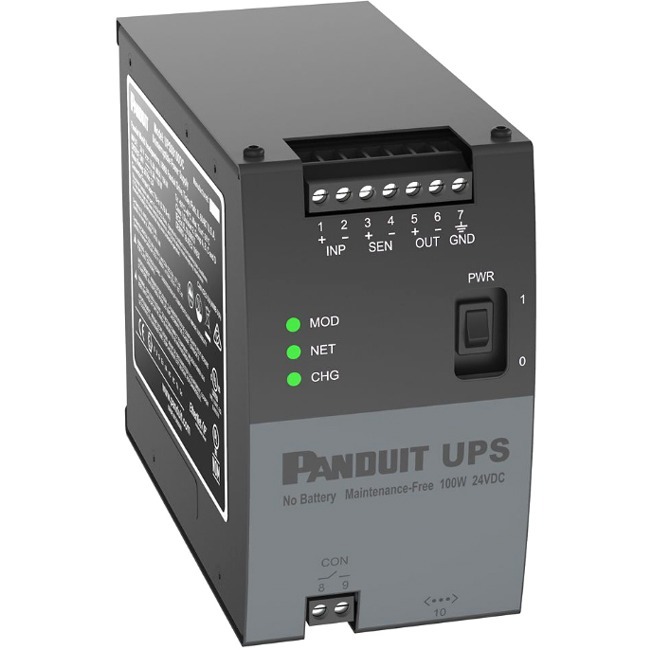

Panduit Industrial Network Uninterruptible Power Supply (UPS)
DIN Rail - 24 V DC Input - 24 V DC Output
About This Product
Overview
The Uninterruptible Power Supply (UPS) shall be powered by 24VDC (nominal) input and provide 24VDC (nominal) output at 100 Watts (max.) for a duration of 1.0 minutes, typ. Ultracapacitors shall be employed for energy storage instead of rechargeable batteries, for maintenance-free operation. Remote device management shall be provided via Ethernet interface and multiple source, platform independent software withSNMP v1/v2c/v3 capability. The UPS shall have the ability to monitorload current and predict Hold Time in single or dual power supply applications. The UPS shall monitor and report temperature to predict changes in capacity over its lifetime. The UPS shall offer DIN rail mounting and UL508 approval for integration into NEMA controlpanels or equipment cabinets.
- Prevents power outage by providing reliable buffering of DC voltage for many hours
- 100 W load capacity - backup power for your valuable electronics
- Overload protection feature effectively prevents motor damage by monitoring the current in the motor circuit and breaking the circuit when an electrical overload is detected
- DC UPS with industry application/usage to ensure maximum productivity with added feasibility
- 24 V DC input voltage for better reliance and maximum dependability
- 24 V DC output voltage for maximum dependability and added productivity
- DIN Rail mounting is ideal for factory areas, in vehicles and marine applications
Quick Specifications
- Product Model
- UPS00100DC
- Product Type
- DC UPS
- Overload Protection
- Yes
- Application/Usage
- Industry Network Switch Programmable Logic Controller (PLC) HMI Control Panel
- Load Capacity (Watt)
- 100 W
- Input Voltage
- 24 V DC
- Input Voltage Range
- 24 V DC - 28 V DC
- Output Voltage
- 24 V DC
