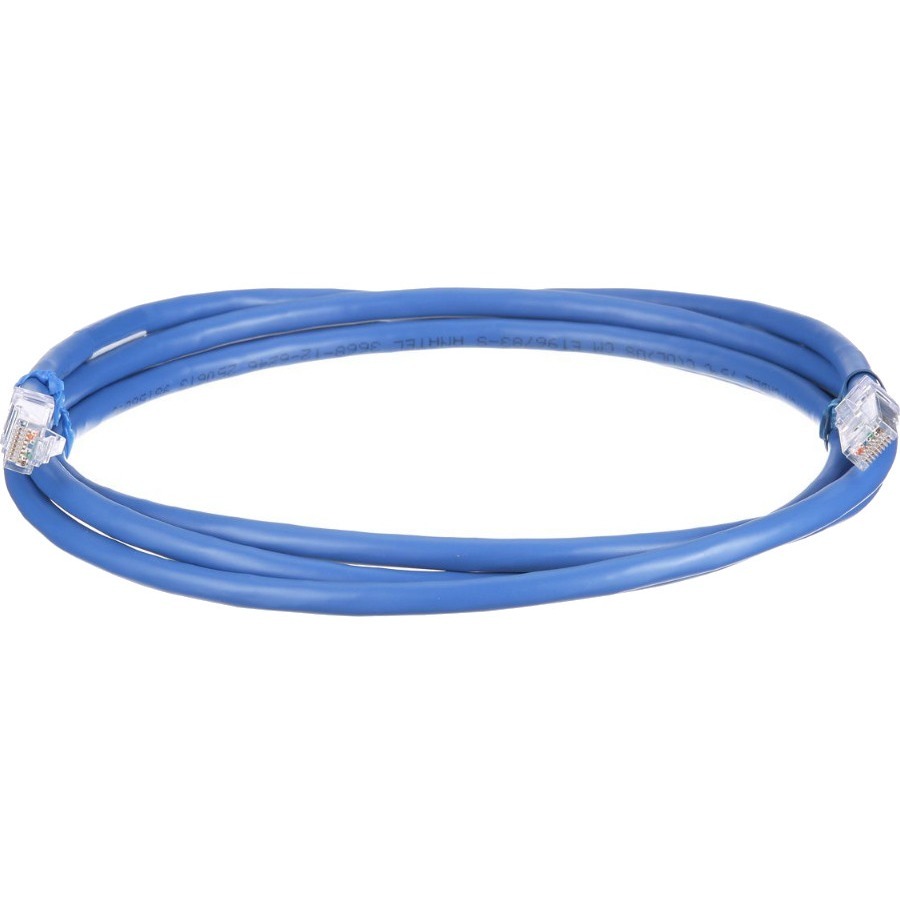

PanNet Cat 6A 24 AWG UTP Copper Patch Cord, 5 ft, Blue
Manufacturer: PANDUIT CORP
Mfr. Part: UTP6AX5BU
5 ft Category 6a Network Cable for Network Device, Computer, Server - First End: 1 x RJ-45 Network - Male - Second End: 1 x RJ-45 Network - Male - 10 Gbit/s - Patch Cable - Gold Plated Contact - CM - 24 AWG - Blue - 1
About This Product
Overview
The TX6A™ 10Gig UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, solid, CM cable with enhanced performance modular plugs. The patch cord offers a small 0.250 inch (6.4mm) cable diameter. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord's slender strain relief boot provides easy access in high-density applications. The patch cord is 5 feet and blue.
- Category 6A/Class EA performance: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical performance requirements for frequencies up to 500 MHZ.
- Headroom warranty: Guaranteed performance beyond the standard when a complete end-to-end TX6A™ 10Gig UTP Copper Cabling System is installed by a Panduit certified installer
- Cable diameter: 0.250 in. (6.4mm) nominal
- FCC and ANSI compliance: Meets ANSI/TIA-1096-A requirements (formerly FCC Part 68); contacts plated with 50 microinches of gold for superior performance
- RoHS compliance: Compliant
- IEC compliance: Meets IEC 60603-7
- PoE compliance: Compliant with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4
- UL rated: UL 1863 approved
- Flammability rating: CM
Quick Specifications
- Product Line
- TX6A 10Gig
- Packaged Quantity
- 1
- Product Type
- Network Cable
- Cable Type
- Category 6a
- Cable Characteristic
- Patch Cable
- Cable Length
- 5 ft
- Connector Type on First End
- RJ-45 Network - Male
- Connector on First End Details
- 1 x RJ-45 Network - Male
