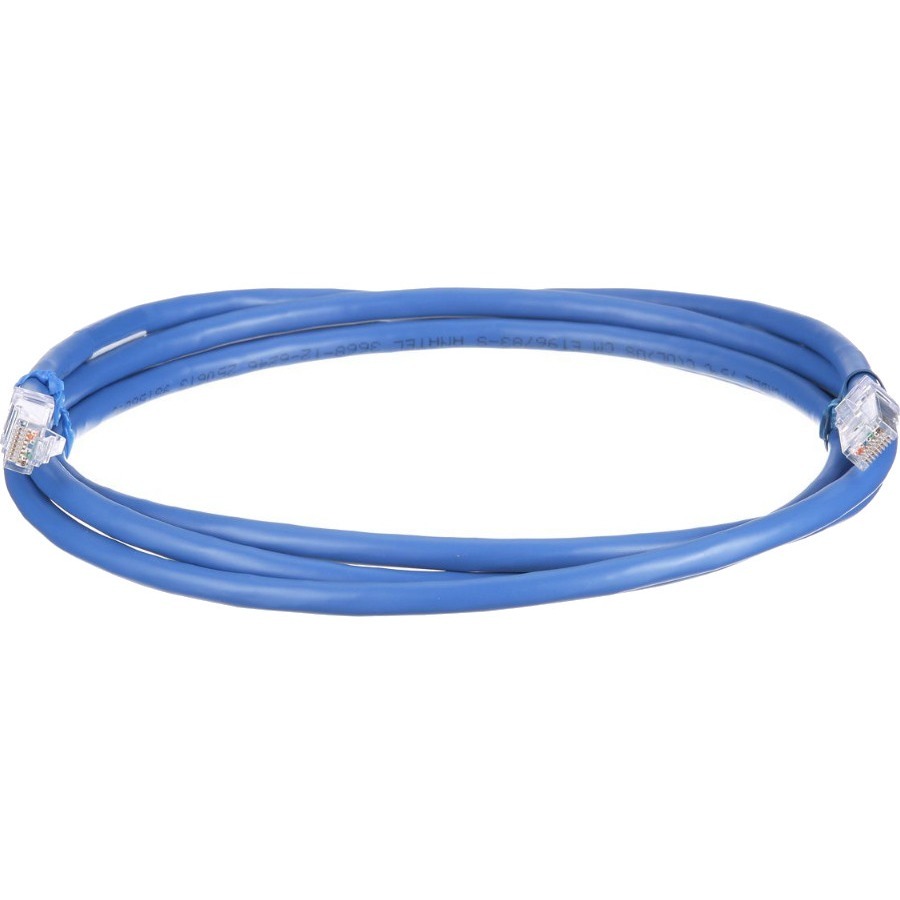

PanNet TX6A 10Gig Cat.6a UTP Patch Network Cable
Manufacturer: PANDUIT CORP
Mfr. Part: UTP6AX9BU
9 ft Category 6a Network Cable for Computer, Network Device, Server - First End: 1 x RJ-45 Network - Male - Second End: 1 x RJ-45 Network - Male - 10 Gbit/s - Patch Cable - Gold Plated Contact - CM - 24 AWG - Blue - 1
About This Product
Overview
The TX6A™ 10Gig UTP Patch Cord is constructed of 24 AWG solid copper cable with an enhanced performance modular plug on each end. The conductors are twisted in pairs and separated by a quadrant separator. All four pairs are surrounded by solid foil tape and a flame retardant jacket. The tape suppresses alien crosstalk and allows 10 Gb/s transmission. The patented tangle-free latch prevents snags and provides easy release to provide reliability. This patch cord is 9 feet and available in Blue.
- Category 6A/Class EA performance: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical performance requirements for frequencies up to 500 MHZ.
- Headroom warranty: Guaranteed performance beyond the standard when a complete end-to-end TX6A™ 10Gig UTP Copper Cabling System is installed by a Panduit certified installer
- Cable diameter: 0.250 in. (6.4mm) nominal
- FCC and ANSI compliance: Meets ANSI/TIA-1096-A requirements (formerly FCC Part 68); contacts plated with 50 microinches of gold for superior performance
- RoHS compliance: Compliant
- IEC compliance: Meets IEC 60603-7
- PoE compliance: Compliant with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4
- UL rated: UL 1863 approved
- Flammability rating: CM
Quick Specifications
- Product Line
- TX6A 10Gig
- Packaged Quantity
- 1
- Product Type
- Network Cable
- Cable Type
- Category 6a
- Cable Characteristic
- Patch Cable
- Cable Length
- 9 ft
- Connector Type on First End
- RJ-45 Network - Male
- Connector on First End Details
- 1 x RJ-45 Network - Male
