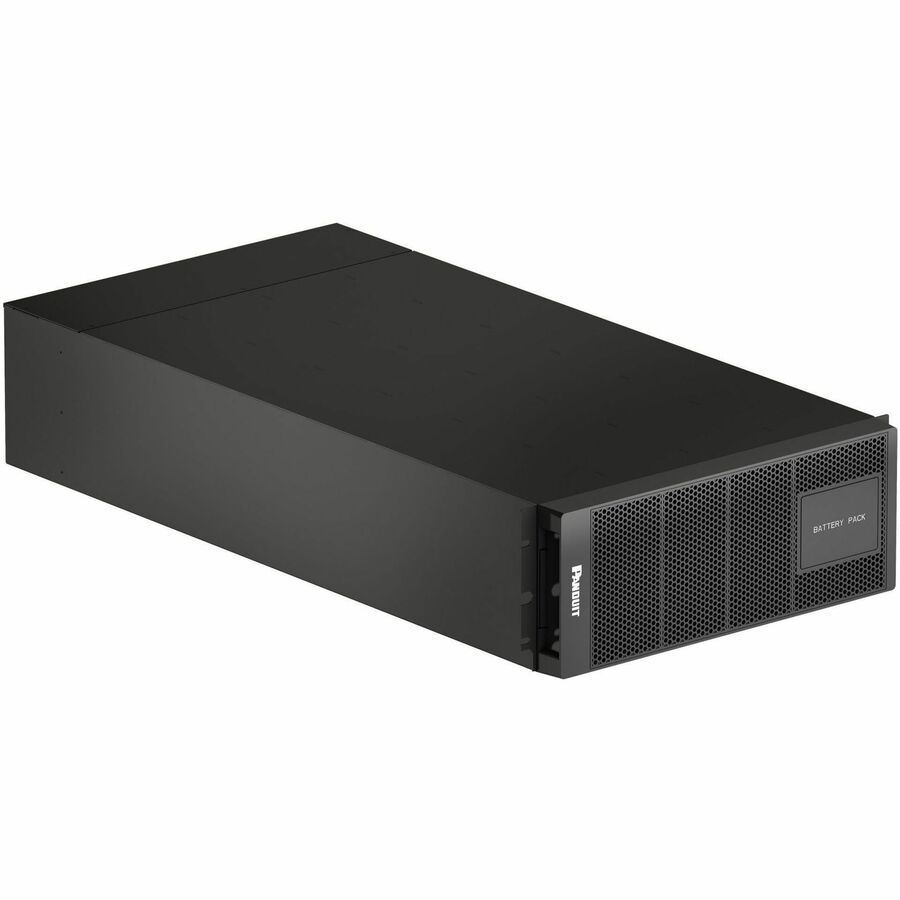

Panduit SmartZone™ UPS 10-20kVA VRLA
Manufacturer: PANDUIT CORP
Mfr. Part: UVP480
480 V DC - Lead Acid - Valve-regulated/Sealed - 3 Year Minimum Battery Life - 5 Year Maximum Battery Life
About This Product
Overview
The Panduit® SmartZone™ UPS with maintenance free VRLA battery, 3-Phase 230/ 400 V unit is a true Online Double Conversion system that delivers highly efficient and reliable power protection for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring, and network functions, complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
- Online double conversion with fully digital control
- Provides stable and clean power with less ripple and by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range
- 138-485Vac, covering extended voltage range, applicable for severe situation such as large power grid fluctuation
- High efficiency
- Up to 98.5%, reducing the energy waste and the cost of electricity
- Energy Savings
- High Efficiency on Smart ECO mode for Online Double Conversion models
- Green Design
- RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
- Output unity power factor
- Means more active power for customer's load
- Input power factor
- Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
- Matchable battery packs
- Allows to connect maximum four external battery packs, extending the UPS backup time
- Three-stage battery charging method
- Three-stage battery charging method matching the most optimal curve and temperature compensated with advanced algorithms prolonging the battery life
- EPO function (Emergency Power Off)
- Allows to quickly and easily shut down the UPS when emergency event occurs
Quick Specifications
- Product Line
- SmartZone
- Product Type
- UPS Battery Pack
- Battery Characteristics
- Valve-regulated/Sealed
- Battery Chemistry
- Lead Acid
- Minimum Battery Life
- 3 Year
- Maximum Battery Life
- 5 Year
- Output Voltage
- 480 V DC
- Battery Size
- Proprietary Battery Size
