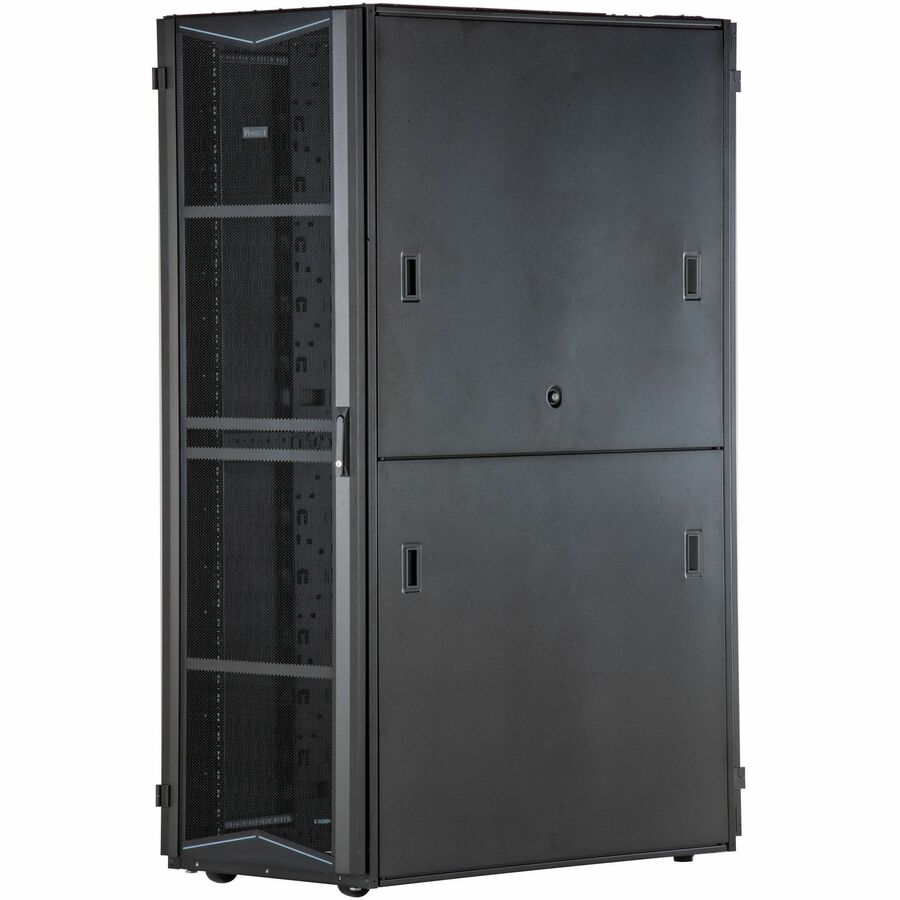

Panduit FlexFusion Cabinet
For Server, PDU - 45U Rack Height - Rack-mountable Enclosed Cabinet - Black - Steel - 2504.45 lb Dynamic/Rolling Weight Capacity - 3507.55 lb Static/Stationary Weight Capacity - 1 Year Warranty
About This Product
Overview
FlexFusion Cabinets shall consist of a welded and assembled steel frame construction available in 600mm, 700mm, and 800mm widths, 1070mm and 1200mm depths and 42 RU, 45 RU, 48 RU, and 52 RU heights. The top of cabinet shall be available with either molded edge protection and snap-in covers for CoolBoot® Grommet Cable Seal or brush cable seal and rear lift-up lid for PDU cable lay-in. Fully adjustable front and rear cage nut equipment rails. Available options includes front single hinged door and rear split-hinged doors with 80% open perforation, horizontally split side panels, cable management fingers, vertical cable manager bracket, PDU mounting bracket and casters. The entire cabinet shall be electrically bonded without the use of bonding wires. Cabinet shall have a 1591kg (3500 lbs.) static load rating and 1136kg (2500 lbs.) rolling load rating.
- Performance Best-in-class static load rating of 3,500 lbs. and 2,500 lbs. rolling load is the result of a sturdy and robust cabinet design that safely allows housing of heavier and high-density equipment. 80% open perforated doors assures maximum airflow thru the cabinet for high thermal application.
- Rapid Deployment Easy to adjust equipment rails with choice of time saving tool-less or standard hardware fastener, tool-less vertical cable manager bracket, and tool-less top cap rear entry allows for a faster cabinet installation time than other cabinets
- Versatility Cabinet is available in wide range of sizes and options for hot aisle/cold aisle or thermal containment deployment
- Scalability Configure to order platform to achieve the cabinet to your specification and save time and reduce Capex in your network deployment
- Bonding Cabinets and accessories are integrally bonded without the use of grounding wires to provide a safe and reliable network while reducing installation costs
- Durable coating Cabinets are powder coated in a durable, low maintenance polyester epoxy paint available in Black (RAL9005) or White (RAL9003)
Quick Specifications
- Product Line
- FlexFusion
- Packaged Quantity
- 1
- Product Type
- Rack Cabinet
- Rack Type
- Enclosed Cabinet
- Application/Usage
- Server PDU
- Features
- Cable Management Adjustable Mounting Rails Removable Side Panel Casters Perforated Door Lockable Door
- Form Factor
- Rack-mountable
- Color Family
- Black
