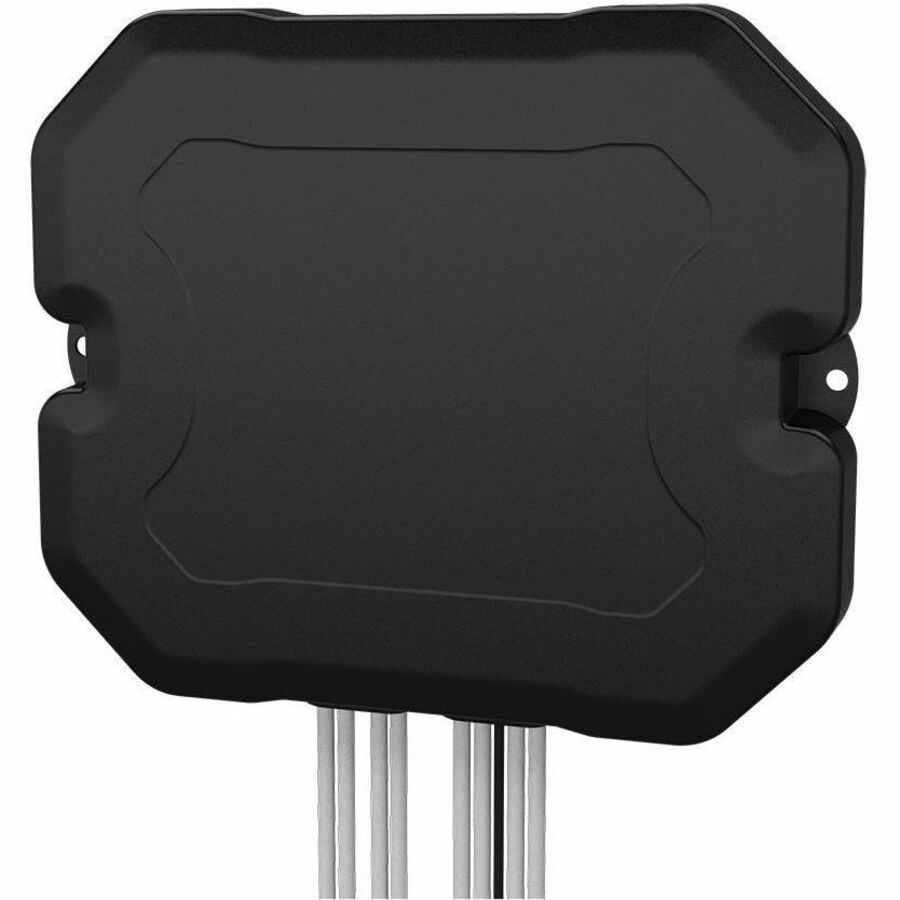

Panorama Antennas 4x4 MiMo 4G/5G Adhesive Mount Antenna
617 MHz - 960 MHz, 1427 MHz - 6000 MHz, 2396 MHz - 7125 MHz, 1559 MHz - 1612 MHz - 26 dB - 7.8 dBi - Cellular Network, Wireless Data Network, GPSAdhesive Mount, Screw Mount - Omni-directional - SMA Connector
About This Product
Overview
The Panorama BAT[X]M4 range is a discrete or covert 4x4 MiMo antenna solution for 4G / 5G with the option of GPS/GNSS, and 2x2, 3x3 or 4x4 dual band 2.4/5.0-7.2GHz WiFi 6e.
The 4G/5G antenna elements cover 617-960/1427-6000MHz to provide a robust communications link to ensure high data rates even in challenging network coverage areas.
The antenna can include a GPS/GNSS module with advanced filtering for either L1/E1/G1/B1 only or dual band L1/E1/G1/B1 with L5/E5a
The antenna is IP55 rated and designed to be mounted on or under a vehicle dashboard or parcel shelf but can be mounted on any nonconductive surface. Versions without GPS can be mounted vertically to a wall or panel.
The BAT range is supplied with integrated low loss flame retardant cables which meet the requirements of UN ECE R118 and EN45545-2
- Adhesive or screw mount to any non-conductive surface
- Mount on or under vehicle dashboard or parcel shelf
- Suitable for mobility or enterprise/branch applications
- 4x4 MiMo 617-960/1427-6000MHz
- Up to 4x4 MiMo WiFi 6e (optional)
- GPS/GNSS L1 or L1/L5 (optional)
Quick Specifications
- Product Series
- BAT[X]M4-6-60-[X]
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 617 MHz - 960 MHz 1427 MHz - 6000 MHz 2396 MHz - 7125 MHz 1559 MHz - 1612 MHz
- Antenna Gain
- 26 dB
- Antenna Gain (Isotropic)
- 7.8 dBi
- Voltage Standing Wave Ratio (VSWR)
- 2.5:1
- Connector Type
- SMA
