Panorama Antennas CM[X]-24-58-2| Low Profile MiMo WiFi Antenna
Manufacturer: Panorama Antennas Ltd
Mfr. Part: CM3-24-58-2RANP
2.4 GHz to 2.5 GHz, 4.9 GHz to 6 GHz - Vehicle - White - Ceiling Mount, Panel - Omni-directional - N-connector, SMA Connector

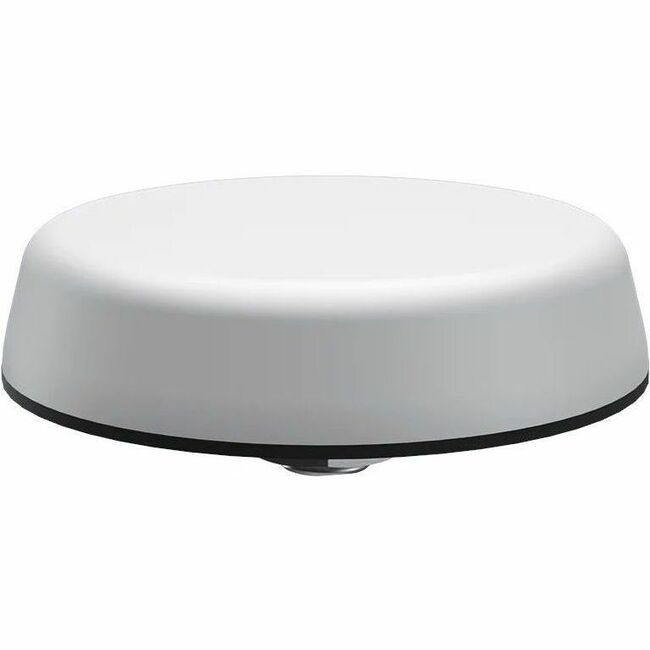

![Panorama Antennas CM[X]-24-58-2| Low Profile MiMo WiFi Antenna](https://content.etilize.com/650/1071465775.jpg)
About This Product
Overview
The CM[X]-24-58-2[VAR] range has been designed to provide MiMo dual-band WiFI coverage in an ultra low profile package.
The compact, robust low-profile housing contains up to four antenna elements with effective isolation and low correlation covering 2.4-2.5/4.9-6GHz.
The antenna is designed to be ceiling mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant CS32 cables (Compliant to UN ECE R118 and EN45545-2) and a halogen-free, flame retardant radome the antenna is suitable for many environments.
- Up to 4×4 MiMo dual band WiFi 2.4/5Ghz antenna
- Low profile Omni-directional ceiling antenna
- Minimal visual impact housing and footprint
- EN50155 EN45545-2 certified
- Covers 2.4GHz and 4.9-6GHz frequencies
- Impact-resistant IK10 approved housing
- Supplied with automotive-grade UN ECE R118 flame retardant cable assemblies
Quick Specifications
- Product Series
- CM[X]-24-58-2[VAR]
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 2.4 GHz to 2.5 GHz 4.9 GHz to 6 GHz
- Connector Type
- N-connector SMA
- Color Family
- White
- Product Color
- White
- Height
- 1.18"
