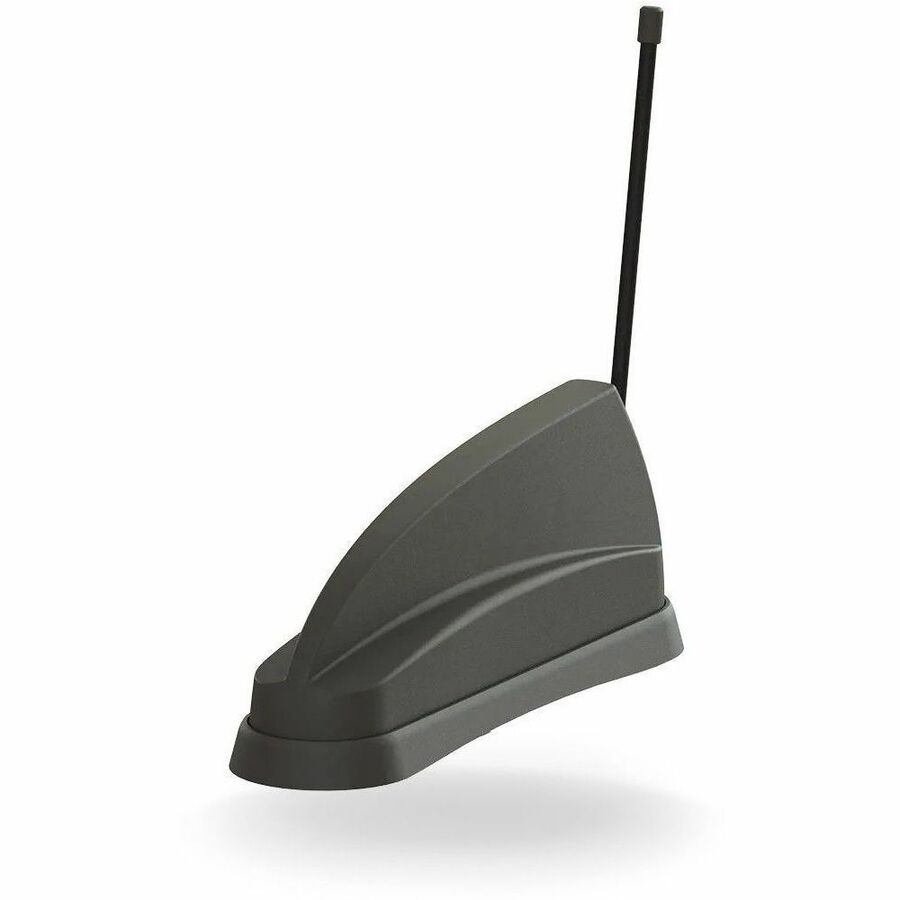

Panorama Antennas Sharkee GPSD-6-60 Antenna
617 MHz to 960 MHz, 1710 MHz to 3800 MHz, 4900 MHz to 6000 MHz - 26 dB - 9 dBi - Cellular Network, GPS, Vehicle, Navigation System - Black - Whip, Stud Mount, Panel, Magnetic Mount - Omni-directional - SMA, FME Connector
About This Product
Overview
The GPSD shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential.
The GPSD 'Sharkee®' range has become a byword for industry leading technology in discrete OEM style shark fin housing. The GPSD-6-60 brings 5G capability to the GPSD family.
The antenna should be installed on a metal panel when a comms whip is used, but if whip is not required, then it may be fitted on a non-metallic panel and still offer similar performance.
The shark fin housing contains a 2×2 MiMo antenna function for 4G/5G (617- 960/1710-6000MHz) and the option of 2×2, 3×3, or 4×4 MiMo dual band WiFi, which supports WiFi 6. An active antenna for GPS/GLONASS/Galileo/ BeiDou is included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF, or 700/800MHz antennas. A blanking cap is supplied for when this is not required.
Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle's resale value.
- Covers 2×2 MiMo 4G/5G LTE
- OEM automotive style SharkFin housing
- Up to 4×4 MiMo WiFi and GPS/GNSS inside the distinctive sharkfin housing
- Single hole mounting - reduces vehicle damage, installation time & cost
- Can be mounted on a metallic or non-metallic panel surface
- Will fit between roof ribs on all major vehicle manufacturers
- Can be retrofitted to a vehicle replacing the factory fitted antenna
- Allows for a range of mobile radio whips
- Sleek semi-covert styling
- UN ECE R 118 Compliant Cable Feeds and IP69K Certified
Quick Specifications
- Product Line
- Sharkee
- Product Series
- GPSD-6-60
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 617 MHz to 960 MHz 1710 MHz to 3800 MHz 4900 MHz to 6000 MHz
- Antenna Gain
- 26 dB
- Antenna Gain (Isotropic)
- 9 dBi
- Connector Type
- SMA FME
