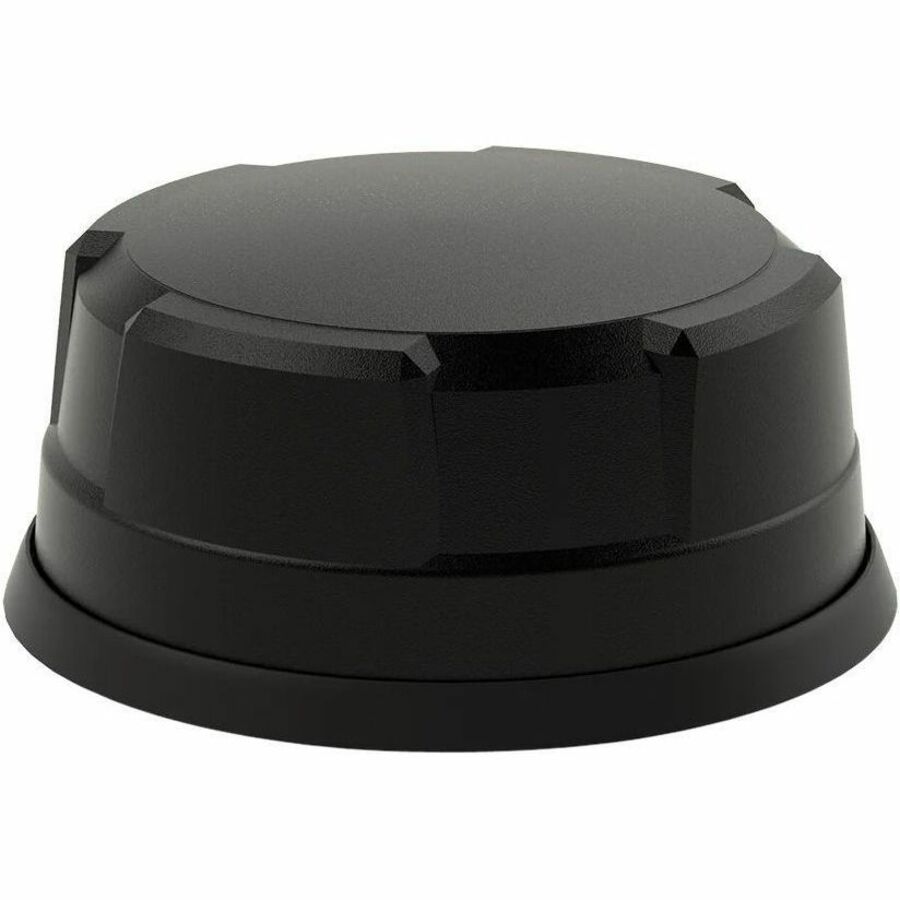

Panorama Antennas LG-IN2445 Antenna
617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 1562 MHz to 1612 MHz - 26 dB - Cellular Network, GPS, GLONASS, Wireless Data Network - Jet Black - Panel - SMA Connector
About This Product
Overview
- Low Profile 4x4 4G/5G MiMo
- 2x2 MiMo Dual Band WiFi
- GPS/GNSS Active Antenna 26dB LNA
The LG-IN2445 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz combined with GPS/GNSS and 2x2 MiMo WiFi 2.4/5.0GHz in a compact low profile housing.
The antenna is designed to be panel mounted and can be fitted on a conductive or nonconductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna radome is available in black or white and meets IK10 for vandal resistance and IP69K for ingress protection.
The integrated GPS/GNSS module supports GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.
LG-IN2445 is supplied as a complete plug and play kit with integrated 5m (16') ultra-low loss TPE extension cables and SMA (m) connectors for 4G/5G and GPS and Rev Pol SMA for WiFi.
- Delivers?enhanced performance at 617 MHz to 960 MHz frequency
- Dramatically enhance the performance of cellular network with this antenna
- Provides gain of up to 26 dB
- Designed to be light in weight and easy to install
Quick Specifications
- Product Model
- LG-IN2445
- Product Type
- Antenna
- Operating Frequency Range
- 617 MHz to 960 MHz 1710 MHz to 6000 MHz 1562 MHz to 1612 MHz
- Antenna Gain
- 26 dB
- Voltage Standing Wave Ratio (VSWR)
- <2.0:1 ± 4MHz
- Connector Type
- SMA
- Color Family
- Black
- Product Color
- Jet Black
