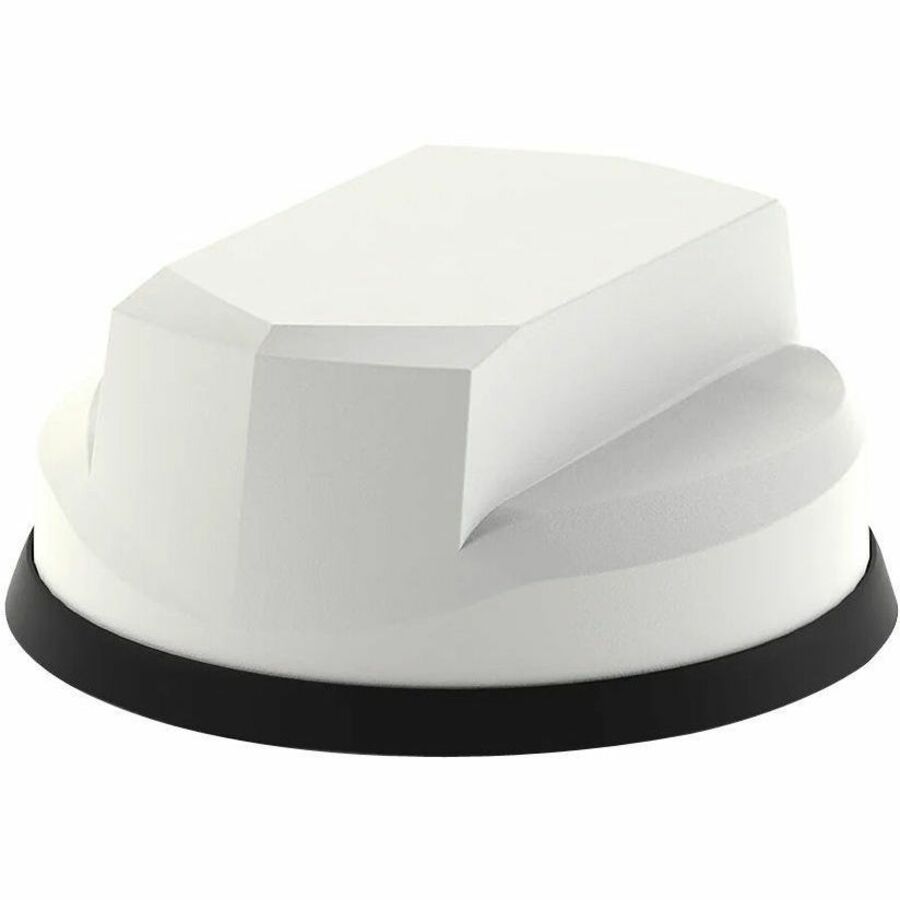

Panorama Antennas LG-IN2456 Antenna
617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 1562 MHz to 1612 MHz - 9 dBi - Wireless Router, Cellular Network, GPS - White - Panel - Omni-directional - SMA Connector - TAA Compliant
About This Product
Overview
The LG-IN2456 is a high performance 2x2 MiMo LTE and GPS/GNSS active antenna covering 617-960/1710-6000MHz.
- Low profile antenna with 3 functions in 1
- 2x2 MiMo 4G/5G LTE cellular and GPS/GNSS in one housing
- Kits with extension cables available for a range of LTE routers
- Suitable for Cradlepoint COR IBR900 Series Routers
The LG-IN2456 antenna has been designed to provide 2x2 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS.
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.
The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
- Designed to operate at 617 MHz to 960 MHz frequency
- Designed for wireless router
- Receive signals from multiple directions with this omnidirectional antenna
- Designed to be light in weight and easy to install
Quick Specifications
- Product Model
- LG-IN2456
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 617 MHz to 960 MHz 1710 MHz to 6000 MHz 1562 MHz to 1612 MHz
- Antenna Gain (Isotropic)
- 9 dBi
- Connector Type
- SMA
- Product Color
- White
- Height
- 3.15"
