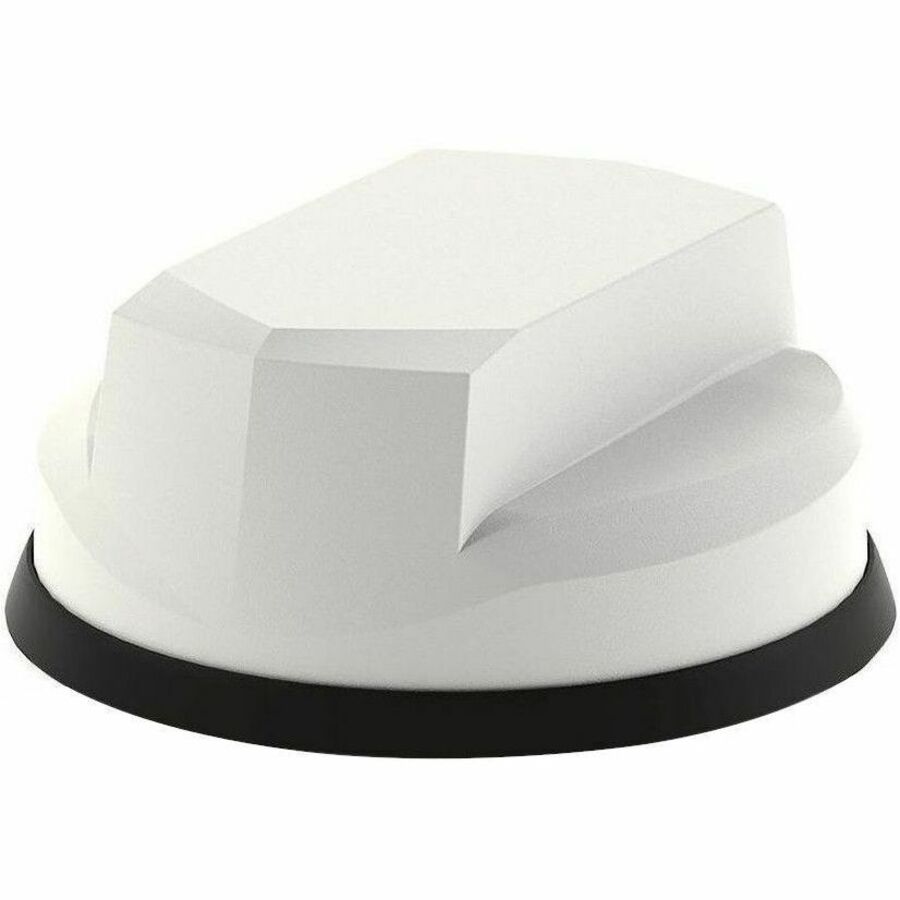

Panorama Antennas Great White L[G]M[H]M-6-60 Antenna
617 MHz to 960 MHz, 1710 MHz to 3800 MHz, 4900 MHz to 6000 MHz - 26 dB - 10 dBi - Vehicle, Cellular Network, GLONASS, GPS, In-vehicle Router - White - Panel, Magnetic Mount - Omni-directional - SMA, RP-SMA, FME Connector
![Panorama Antennas Great White L[G]M[H]M-6-60 Antenna](https://content.etilize.com/900/1077309951.jpg)
About This Product
Overview
The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2×2 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low profile package.
The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6×6 MiMo WiFi 2.4/4.9-7.2GHz.
The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118.03 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications.
The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference.
The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
- Delivers?enhanced performance at 617 MHz to 960 MHz operating frequency range
- This antenna is an excellent choice for vehicle
- Operates at 26 dB gain
- Provides ease of management and installation thanks to its omni-direction feature
- Designed to be light in weight and easy to install
Quick Specifications
- Product Line
- Great White
- Product Series
- L[G]M[H]M-6-60
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 617 MHz to 960 MHz 1710 MHz to 3800 MHz 4900 MHz to 6000 MHz
- Antenna Gain
- 26 dB
- Antenna Gain (Isotropic)
- 10 dBi
- Connector Type
- SMA RP-SMA FME
