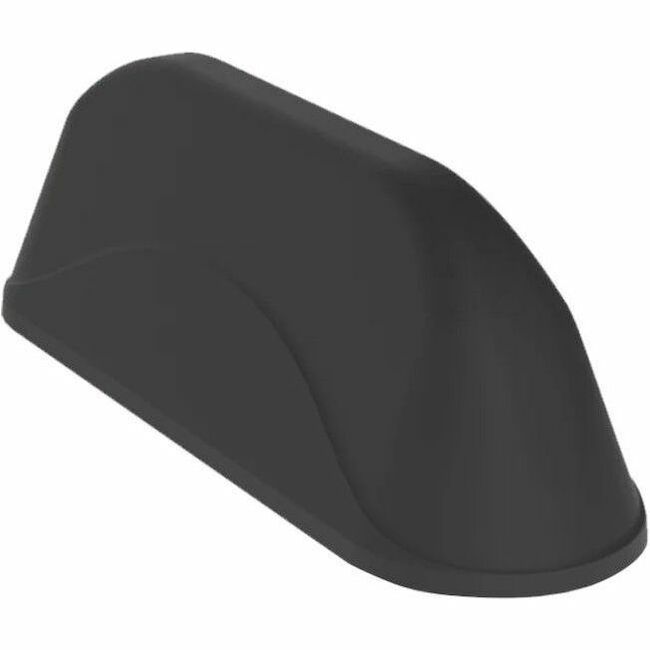

Panorama Antennas L[G]AM-7-27-[X]24-58 Antenna
698MHz - 960MHz, 1710MHz - 3800MHz, 1562MHz - 1612MHz, 698MHz - 960MHz, 1710MHz - 2170MHz, 2500MHz - 3800MHz, 2300MHz - 2500MHz, 4900MHz - 6000MHz - 26 dB - 6 dBi - Cellular Network, GPS, Vending Machine, Payment Terminal - Black - Panel Mount - Omni-directional - SMA Connector
![Panorama Antennas L[G]AM-7-27-[X]24-58 Antenna](https://content.etilize.com/650/1044537330.jpg)
About This Product
Overview
This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications. The L[G]AM consists of a 2×2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz, a 2×2 MiMo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface.
- Compact low profile MiMo LTE antenna
- 1x or 2×2 MiMo dual-band WiFi
- Optional GNSS version available
- High performance in a distinctive design
- Covers all 2G/3G/4G/5G LTE cellular band
- Dual-band 2.4/5GHz WiFi
- Weatherproof IP66 Certified design
- Single hole mount with a small footprint
Quick Specifications
- Product Series
- L[G]AM-7-27-[X]24-58
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 698MHz - 960MHz 1710MHz - 3800MHz 1562MHz - 1612MHz 1710MHz - 2170MHz 2500MHz - 3800MHz 2300MHz - 2500MHz 4900MHz - 6000MHz
- Antenna Gain
- 26 dB
- Antenna Gain (Isotropic)
- 6 dBi
- Voltage Standing Wave Ratio (VSWR)
- <2:1
- Connector Type
- SMA
