Panorama Antennas LP[G]AM-BC3G-26 | Compact Low profile MiMo 2G/3G/4G Antenna
698 MHz to 960 MHz, 1710 MHz to 3800 MHz, 1562 MHz to 1612 MHz - 26 dB - Cellular Network, Wireless Data Network - Black - Panel - Omni-directional - SMA Connector

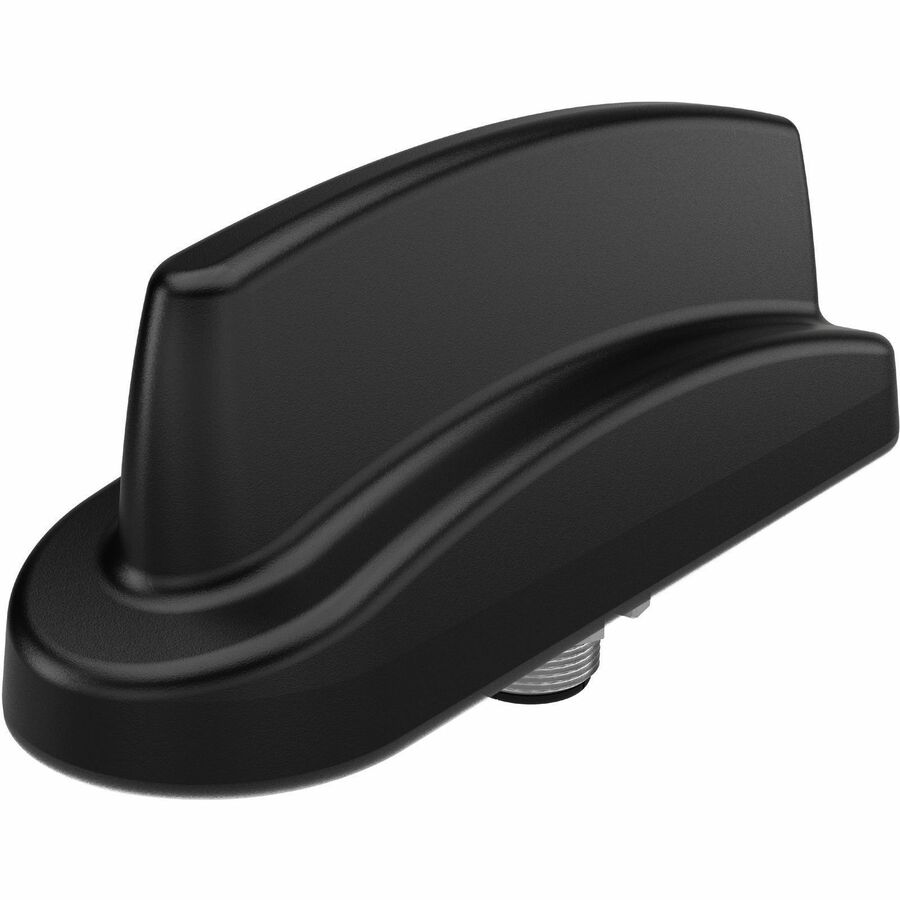

![Panorama Antennas LP[G]AM-BC3G-26 | Compact Low profile MiMo 2G/3G/4G Antenna](https://content.etilize.com/900/1035484367.jpg)
About This Product
Overview
The LP[G]AM-BC3G-26 range has been designed to provide MiMo Cellular / LTE antenna function for IOT and M2M applications.
- Supports 2x2 MiMo 2G/3G/4G
- Ideal for vending machines and kiosks
- Optional GPS/GNSS (26dB LNA)
The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTEbands in freq. range 698-960/1710-3800MHz. The LG version includes an active GPS/GNSS/Galileo/Beidou antenna for applications which require position or timing function.
The antenna can be fitted on a non- conductive panel if required and offers easy, quick, secure and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 3m (10') cables and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.
- Delivers?enhanced performance at 698 MHz to 960 MHz operating frequency range
- This antenna provides enhanced signals for your cellular network
- Provides gain of up to 26 dB
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Designed to be light in weight and easy to install
Quick Specifications
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 698 MHz to 960 MHz 1710 MHz to 3800 MHz 1562 MHz to 1612 MHz
- Antenna Gain
- 26 dB
- Connector Type
- SMA
- Product Color
- Black
- Height
- 1.93"
- Width
- 1.77"
