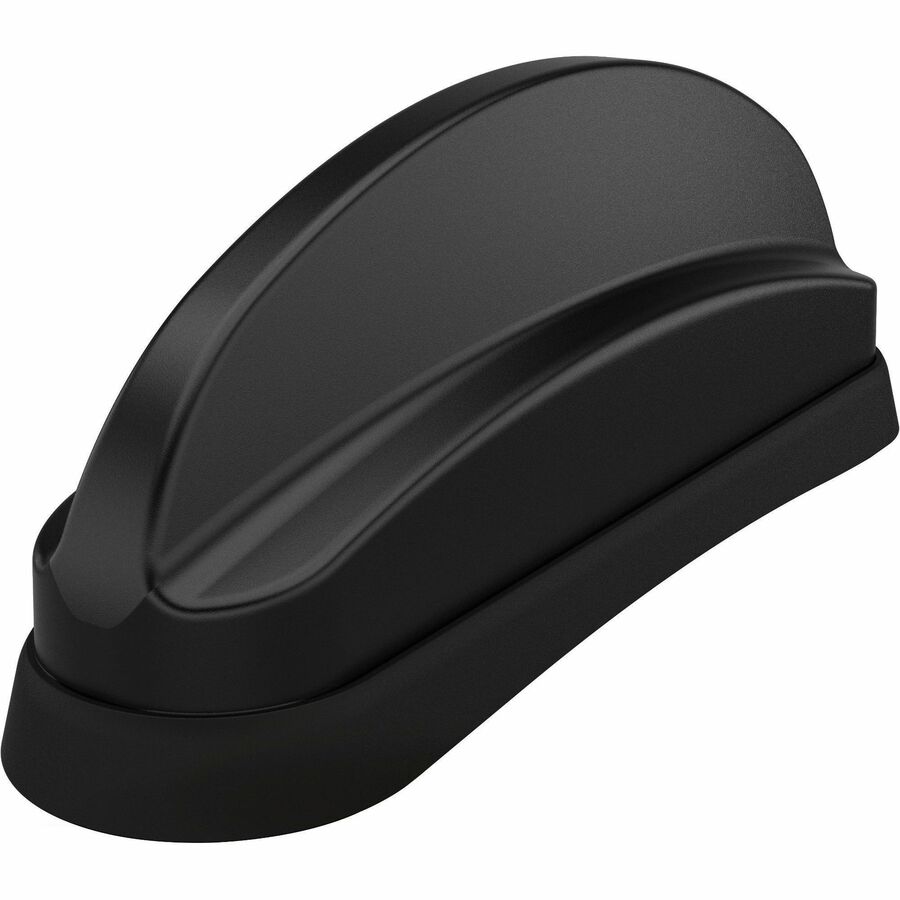

Panorama Antennas LP[G]AM[F]-6-60 Antenna
617MHz - 960MHz, 1427MHz - 6000MHz - 26 dB - 9 dBi - Kiosk, Display Screen, Vending Machine, Cellular Network - Black - Mast/Panel/Wall - Omni-directional - SMA Connector
![Panorama Antennas LP[G]AM[F]-6-60 Antenna](https://content.etilize.com/900/1072324095.jpg)
About This Product
Overview
The LP[G]AM[F]-6-60 platform contains a 2×2 MiMo antenna function for 4G/5G (617-960/1427-6000MHz) and the option of 2×2, 3×3 or 4×4 MiMo dual-band WiFi, which supports WiFi 6E
An optional active antenna for GPS/GLONASS/Galileo/ BeiDou can be included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.
The LP[G]AM[F]-6-60 is designed for use on conductive metal panels but can be used on non-conductive panels with some detriment to performance in the 600MHz band.
This antenna is ideal for IoT applications including vending machines, kiosks, display screens and payment terminals where a cost-effective, efficient and robust antenna is essential. Supplied with integrated flexible FR RG174 cables and requiring only a single hole mounting, the LP[G]AM-6-60 range is a convenient and easy to install solution for a range of applications.
- 2×2 MiMo 4G/5G LTE Antenna
- Low Profile Combination Product
- Up to 7 Antennas in 1 Housing
- Covers Wideband 600-6000MHz Frequencies
- Optional GPS/GNSS and up to 4×4 MiMo WiFi
- Meets IP69K Certification
Quick Specifications
- Product Series
- LP[G]AM[F]-6-60
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 617MHz - 960MHz 1427MHz - 6000MHz
- Antenna Gain
- 26 dB
- Antenna Gain (Isotropic)
- 9 dBi
- Voltage Standing Wave Ratio (VSWR)
- <2:1
- Connector Type
- SMA
